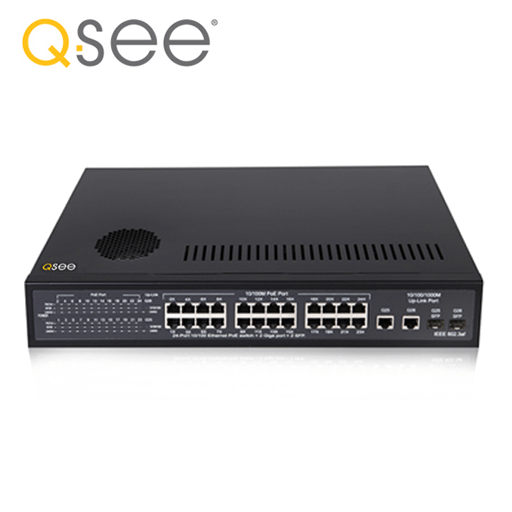

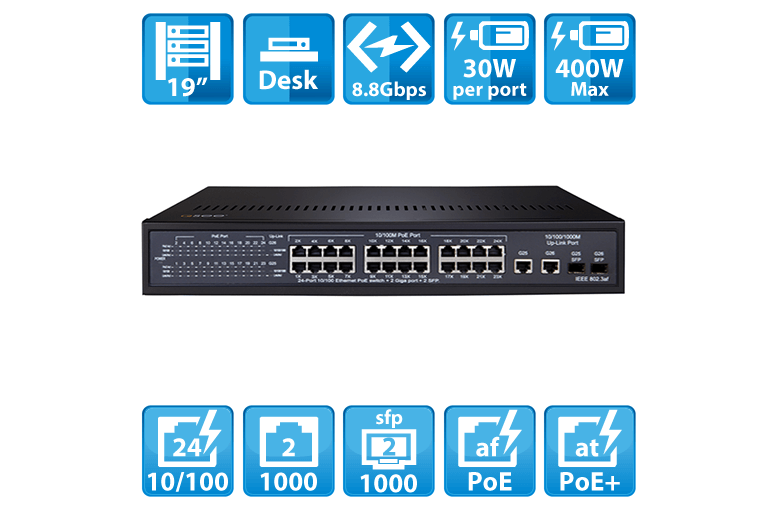

QAPE2401 24 Port 10/100 PoE+ Switch 400W with 2 Port 10/100/1000

Q-See QAPE2401 Switch : 24x 10/100 RJ45 PoE+ : 2x 10/100/1000 RJ45 : 2x 10/100/1000 SFP : 48VDC 30W /PoE : 400W PoE Budget : 802.3af/at : pin 3,6 for power- : pin1,2 for power+ : 430x266x66.4 mm

SKU: QAPE2401 Category:

Q-See QAPE2401 Switch : 24x 10/100 RJ45 PoE+ : 2x 10/100/1000 RJ45 : 2x 10/100/1000 SFP : 48VDC 30W /PoE : 400W PoE Budget : 802.3af/at : pin 3,6 for power- : pin1,2 for power+ : 430x266x66.4 mm



Overview

The Q-See QAPE2401 requires no configuration. All setup is automatic for IP cctv cameras, IP phones, access points etc.
As a fully unmanaged access PoE+ switch the QAPE2401 provides 24 10/100/1000Mbps ports that supports 802.3at/af compliant PoE+ to each port with a total PoE power budget of 400W. This significant power supply allows for access points, IP phones, cameras and other devices to be on each port with the use of inline PoE extenders and PoE splitters. As CCTV cameras are very often more than 100meters from the access switches the inclusion of PoE+ ports facilitates runs up to 600 meters with extenders saving on data cabinets, inline switches and electrical power requirements. The switch also comes equipped with 2x 10/100/1000 uplink ports with either RJ45 or SFP connectivity. These ports allow for aggregated backhaul bandwidth without bottlenecks.
With all these advanced features, the Q-See PoE Switch is an ideal choice for small and medium business networking for phones, cctv cameras and other PoE network edge devices.







Specifications

Model QAPE2401
Bandwidth 8.8Gbps
Data Transfer Rate 10/100M
PoE Standard IEEE802.3 af/at

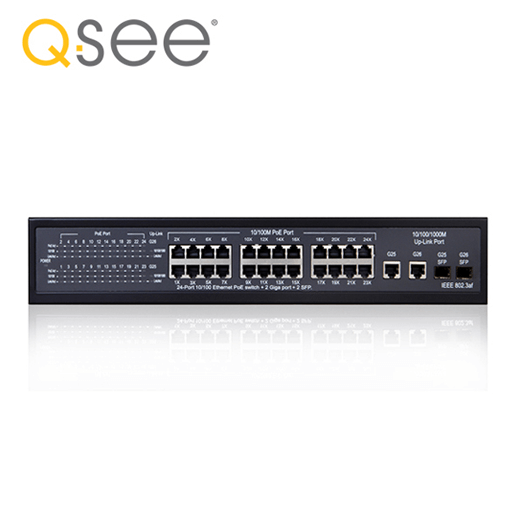

Fixed port 24 x 10/100M adaptive full PoE ports / 2 gigabit RJ45 and 2 SFP ports
Transmission distance 100M
Address list 8K MAC addresses
Dimensions 430x266x66.4mm
LED indicator power / port status (Link/Act) 1 to 10 / PoE rate (speed) 1 to 8
PoE Output Power 48VDC / 400W max combined
PoE Output On RJ-45 “+ pin 3/6 ; – pin 1/2”
Forwarding rates 10Mbps: 14880PPS; 100Mbps: 148800PPS; 1000Mbps: 1488000PPS
Consumption <25.5W
Working Temperature 0°C-40°C
Storage temperature -40°C-70°C
Operating humidity 10%-90% RH non-condensing
storage humidity 5%-90% RH non-condensing
Certificate FCC class B / CE Mark class B / RCM

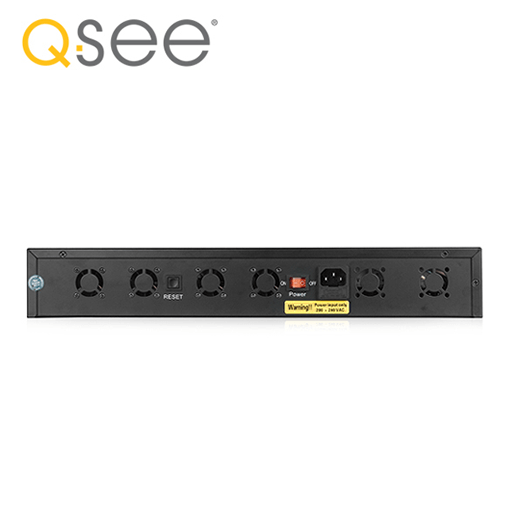

Power Supply 48V 7.3A Internal
