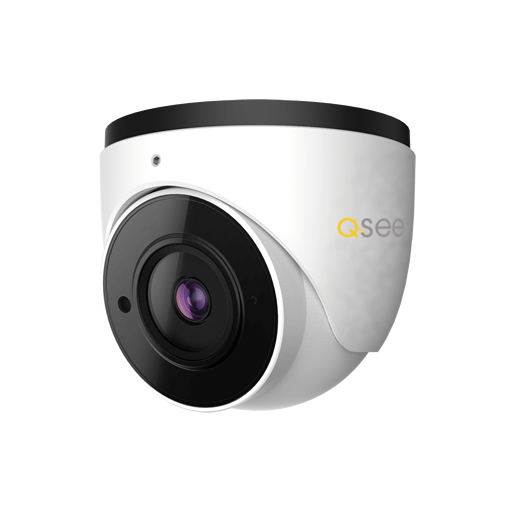

Q-See QVP55DSA IP Dome Camera : 1/2.7″ 5MP CMOS sensor : 2592×1944 : 2.8-12mm MotorZoom Lens 90.5°-32.9° : DWDR/HLC/BLC/DeFog/3DDNR : 30-50M IR Night Vision : H.265 : Triple Stream : IP67 : Smart Analytics
With the Super-HD clarity, high megapixel count and Intelligent Video Analytics the Q-See 5MP QVP55DSA IP camera is the new technical leader for standard commercial, industrial and enterprise deployments where exacting scene fields of view are required. This cameras reliability, quality, clarity, ease of installation, and neat design is second to none and includes support for the latest H.265 compression standard and motorised 2.8mm – 12mm optical zoom. In addition to these great new technical add-ons this camera supports smart image manipulation technologies to improve dramatically the image displayed and recorded.
Intelligent Video Analytics
Smooth 20 fps @5MP and 30 fps @ 4MP
Advanced compression
One concern with the very resolution cameras is their increased network bandwidth and storage requirements. 4K is essentially 400% more dots than standard 1080P High Definition cameras. Therefore bandwidth, processing and storage requirements are likewise 400% larger. To combat this problem the QVP51BS and 54DS cameras support the high compression H.265 CODEC. This reduces bandwidth and storage needs by 50% when compared to H.264.
Advanced image improvement
Smart apps and software
Match with the next generation Network Video Recorders with built in PoE ports for advanced video smart analysis, remote alerts, storage and plug and play setup.
Specifications
Model |
QVP55DSA |
Camera |
|
Image Sensor | 1 / 2.7 “CMOS |
Image Size | 2592×1944 |
Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
Iris Type | Fixed Iris |
Min. Illumination | 0.0236 lux @F2.0, AGC ON; 0 lux with IR |
0.0085 lux @ F1.2, AGC ON; 0 lux with IR | |
Lens | 2.8 ~ 12 mm @F1.4; Horizontal field of view:90.5° ~ 32.9° |
Lens Mount | Φ14 |
Wide Dynamic Range | Digital WDR |
BLC | Yes |
HLC | Yes |
Defog | Yes |
Digital NR | 3D DNR |
Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° |
Image |
|
Video Compression | H.265 / H.264 |
H.265 Compression Standard | Main Profile@Leve4.1 High Tier |
Resolution | 5MP ( 2592 × 1944 ), 4MP ( 2560 × 1440 ),1080P ( 1920 × 1080 ),720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
Main Stream | 60Hz : 5MP(1~20fps)/4MP(1~30fps)/1080P(1~30fps)/720P(1~30fps) |
50Hz : 5MP(1~20fps)/ 4MP(1~25fps)/1080P(1~25fps)/720P(1~25fps) | |
Sub Stream | 60Hz :720P (1~15fps)/D1(1~30fps)/CIF (1~30fps) |
50HZ:720P(1~12fps)/D1(1~25fps)/CIF (1~25fps) | |
Third Stream | 60Hz : D1/CIF/480×240 (1~30fps) |
50HZ: D1/CIF/480×240 (1~25fps) | |
Bit Rate | 64 Kbps ~ 5 Mbps |
Bit Rate Type | VBR / CBR |
Audio Compression | G711A / U |
Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
ROI | Each ROI to be configured separately |
Interfaces |
|
Network | RJ45 |
Video Output | No |
Audio | 1CH built-in MIC |
Storage | No |
Hardware Reset | No |
Functions |
|
Remote Monitoring | Web browsing,CMS remote control |
Online Connection | Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission |
Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS |
Interface Protocol | ONVIF, GB-T/28181-2011 |
Storage | Network remote storage |
Smart Alarm | Motion detection |
Intelligent Analytics | Object removal detection, abnormal video signal detection, intrusion detection and line crossing detection (optional) |
General Function | Watermark, IP address filtering, video mask, heartbeat, password protection |
PoE | Yes |
IR Distance | 30 ~ 50 m |
Ingress Protection | IP67 |
Others |
|
Power Supply | DC12V/PoE |
Power Consumption | < 10W |
Operating Environment | -30 °C ~ 60 °C (-22°F~140°F),Humidity: less than 95 % (non-condensing) |

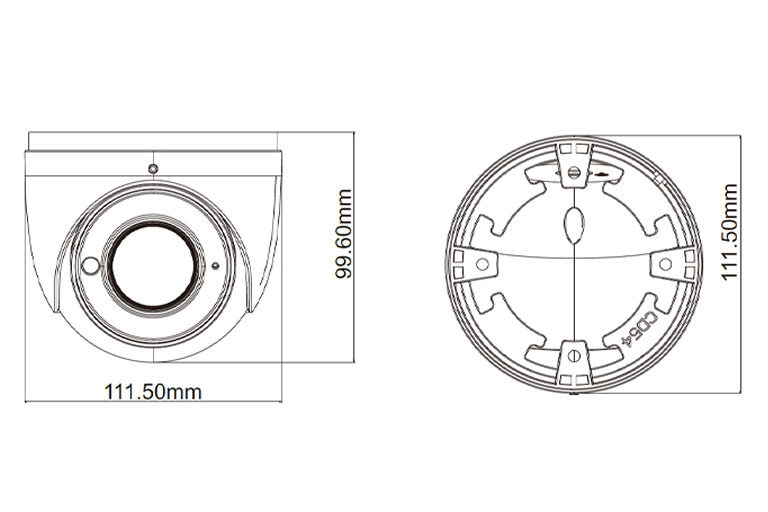

Dimensions ( mm ) | Φ 111.5 × 99.6 |
Weight ( net ) | Approx. 0.64KG |
Installation | Ceiling mounting; Wall mounting |
