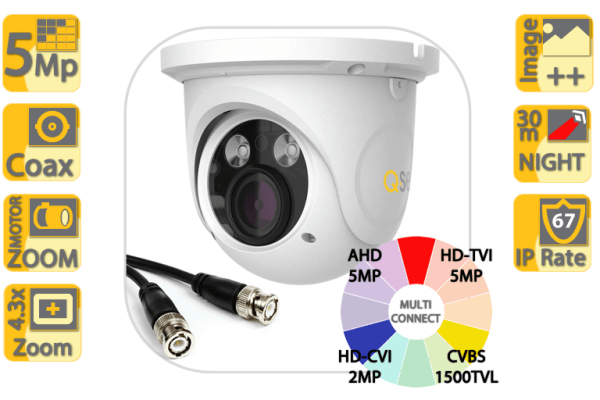

Q-See QH7555D 5MP Multi Connect Motorised Dome : AHD/TVI/CVI/CVBS : 5MP 2592×1944 1/2.7″ CMOS : 2.8-12mm MotorLens 96°-32° : 5MP@20fps : DWDR/HLC/BLC/3DDNR/AGC/AWB : 20-30M SmartIR Night Vision : Coax : IP66 : OSD/COC : 130x110mm
Have you been told you need to upgrade your cabling to get the latest Super-HD and Ultra-HD CCTV? Well that just isn’t the case. Keep your previously installed copper coaxial (TV antenna style) cabling and camera power infrastructure and simply replace your cameras and recorder with new generation 5MP Super-HD and 8MP 4K Ultra-HD cameras and recorders. Add a variable focus motorised zoom to very accurately focus the camera to exactly capture the scene you require.

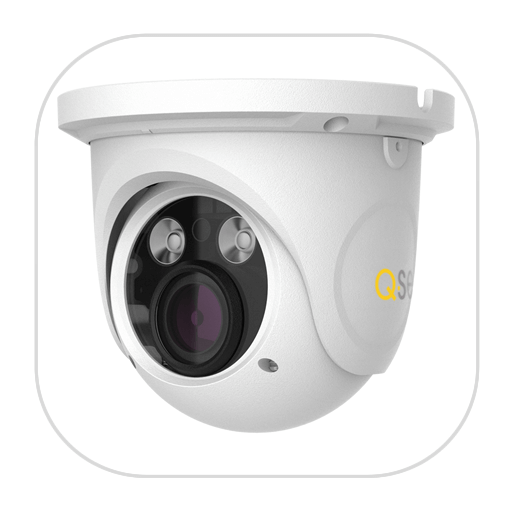

The Q-See QH7555D is a variable focus motorised zoom lens of 2.8-12mm length. This allows you to focus the 5MP capture pixels on exactly the scene you require with out waste. The Image++ features of the camera improve the image for the greatest clarity before it is transmitted to your recorder. It is compatible with AHD/TVI/CVI and CVBS standards. The main Image++ features enabled as standard in the QH7555D are:
 |
|
NOTES:

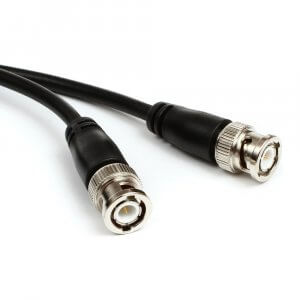

Please note this is not an IP camera. It does not use the Ethernet/RJ45 cables typically used to connect computer equipment but rather is a multi-connect camera designed for use with coax RG59 or RG6 cabling. If you have very long coaxial cable installations with 24V AC power to your old cameras check with us on the options for camera side power conversion from 24VAC down to 12V DC.
Advanced image improvement
Smart apps and software
Specifications
Model |
QH7555D |
Camera |
|
| Image Sensor | 1 / 2.7 “CMOS |
| Resolution | 5MP |
| Image Size | 2592 x 1944 |
| Video Output | AHD / TVI /CVI/CVBS |
| Image System | PAL / NTSC |
| Electronic Shutter | Auto; 1 / 50s ~ 1 / 100000s ( PAL );1 / 60s ~ 1 / 100000s ( NTSC ) |
| IR Distance | 20 ~ 30 m |
| Frame Rate | 5MP @20fps |
| Min. Illumination | Color : 0.01 lux@F1.2, AGC ON; B/W : 0 lux with IR |
| Lens | 2.8-12mm |
| Lens Mount | D14 |
| S / N Ratio | ≥52dB ( AGC OFF ) |
| Ingress Protection | IP 66 |
Functions |
|
| Function Control | OSD ( COC Control ) |
| Day & Night | ICR |
| Digital WDR | Yes |
| Digital NR | Yes |
| AGC | Yes |
| Auto White Balance | Yes |
| BLC | Yes |
| Front light Compensation | Yes |
| Defog | No |
| HLC | Yes |
| Sharpness | Yes |
| Mirror Image | Yes |
| Smart IR | Yes |
| Image Setting | Yes |
| Defect Correction | Auto / Manual |
| Language | 13 languages |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360° |
Others |
|
| Power Supply | DC12V ( ± 10% ) |
| Power Consumption | IR OFF : < 1W; IR ON : < 3W |
| Working Environment | – 30 °C ~ 50 °C, 10 % ~ 90 %（relative humidity） |

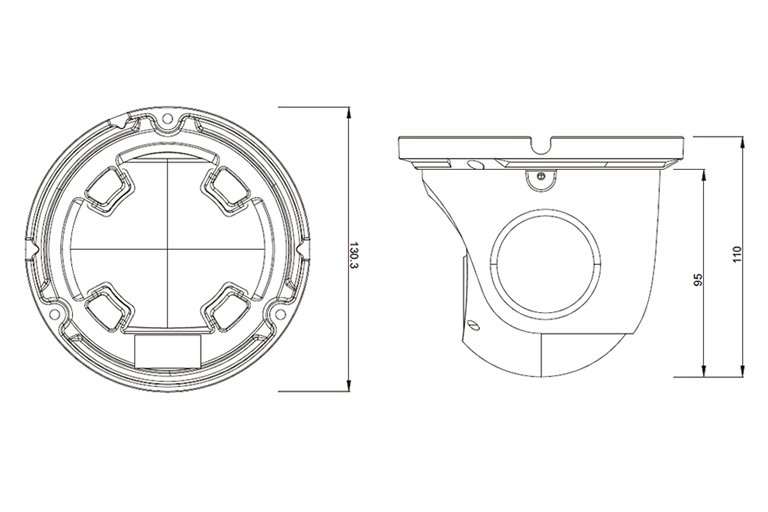

| Dimensions ( mm ) | Ф 130.3 x 109 |
| Weight ( net ) | Approx. 0.66KG |
