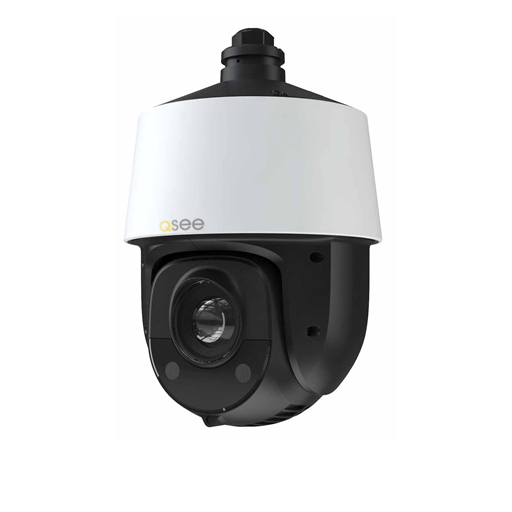

2MP QVP220PZ 20x PTZ with Analytics


Q-See QVP220PZ IP Starlight PTZ Camera : 2MP 1/2.8″ CMOS sensor : 4″ Dome : 20X 5.5-110mm Zoom 52.01°-1.78° : 1920×1080 : 150M IR Night Vision : WDR/HLC/BLC/DeFog/3DDNR : 8xCruise 360xPreset 4xTracks : 128GB Micro-SD : IP66 : Smart Analytics : Intelligent Preset Ready

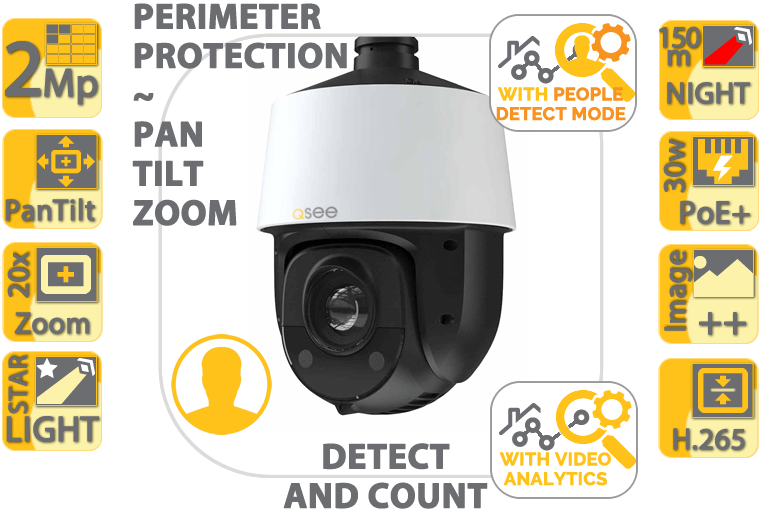

Motorised Pan-Tilt-Zoom ( PTZ ) camera with Intelligent Perimeter Intrusion Detection, People Detection and Counting.

SKU: QVP220PZ Categories: , ,

Q-See QVP220PZ IP Starlight PTZ Camera : 2MP 1/2.8″ CMOS sensor : 4″ Dome : 20X 5.5-110mm Zoom 52.01°-1.78° : 1920×1080 : 150M IR Night Vision : WDR/HLC/BLC/DeFog/3DDNR : 8xCruise 360xPreset 4xTracks : 128GB Micro-SD : IP66 : Smart Analytics : Intelligent Preset Ready

Q-See Intelligent Smart Analytics area protection Pan Tilt Zoom cameras offer the latest in intrusion detection, line cross, people detection and counting technologies with the most advanced motorized optics possible.  The QVP220PZ is a smaller style 4″ dome camera with Image++ features, a 20x 5.5-110mm motorised zoom and 150 meter InfraRed night vision with Starlight.

Q-See PTZ cameras can be preset with up to 360 position settings and can support 8 cruise paths with up to 16 preset stop points in each cruise.  PTZ Cruise is sometimes referred to as “race track”.

In addition you may enhance the PTZ coverage with intelligent preset tracking when matched with an AI-NVR and triggers sent from static wide area non-ptz cameras.  The static cameras jump the PTZ to preset zones identified by their Intelligent Video Analytic events.  This type of setup is very advanced and offers the ultimate in perimeter and wide area protection.






















Intelligent Video Analytics

Video Analytics Scene Change
Detect if the stable part of a scene permanently changes with adjustable time sensitivities
Video Analytics Blurr Detection
Alert on camera blur detection through fogging, deliberate smearing or otherwise.
Video analytics Intrusion Detection
Alert on motion within a multipoint area to detect movement through a window or an area that is out of bounds etc.
Video Analytics Line Crossing
Provides alerts when objects (usually people) cross a line in either one direction, the other or both.
Video Analytics Object Detection
Detect when an object has been added or removed from a scene. Great for lost item recovery.
Video Analytics Region Enter / Exit
Area intrusion detection function for alerts when part of a specific scene region is used as an entry or exit point. Ideal for FireDoor alerts etc.
Video Analytics Tamper Detection
Detect if a camera is tampered through changed field of view, with masking, blocking, physical damage etc











Advanced compression

One concern with the very resolution cameras is their increased network bandwidth and storage requirements. 4K is essentially 400% more dots than standard 1080P High Definition cameras. Therefore bandwidth, processing and storage requirements are likewise 400% larger. To combat this problem the QVP51BS and 54DS cameras support the high compression H.265 CODEC. This reduces bandwidth and storage needs by 50% when compared to H.264.




Advanced image improvement




Smart apps and software










Match with the next generation Network Video Recorders with built in PoE ports for advanced video smart analysis, remote alerts, storage and plug and play setup.









Image Sensor 1 / 2.8 “progressive scan CMOS
Min. Illumination Color: 0.005 lux @F1.6, AGC ON
B/W: 0.001lux @F1.6, AGC ON,0 lux with IR
White Balance Auto/Manual/ATW (Auto-tracking WB)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
S/N ratio More than 50dB
Gain Auto/Manual
Shutter Time 50Hz: 1 / 1 s ~ 1 / 25, 000 s, 60Hz: 1 / 1 s ~ 1 / 30, 000 s
Day&Night IR Cut Filter
Privacy Mask 4 programmable privacy masks
Focus Mode Auto/Manual
WDR True WDR, 2 frames in one


Focal Length 5.5-110mm, 20x optical zoom
Zoom Speed Approx. 3.5s (optical lens, Wide-TELE)
Field of View Horizontal field of view: 52.01° to 1.78° (Wide-TELE) Vertical field of view: 29.30° to 3.15° (Wide-TELE) Diagonal field of view: 59.79° to 3.62° (Wide-TELE)
Working Distance Wide:1.0m~INF Tele: 1.5m~INF
Aperture Range F1.6 (Wide) to F3.5 (TELE)


IR Distance 150m
Smart IR Support


Pan Range 360° endless
Pan Speed Configurable, from 0.5°/s to 80°/s; Preset speed: 80°/s
Tilt Range From -5° to 90° (auto-flip)
Tilt Speed Configurable, from 0.5°/s to 80°/s; Preset speed: 80°/s
Proportional Zoom Support
Preset 360
Cruise 8 cruises, up to 16 presets for each cruises
Trace 4 tracks, record time over 3 minutes for each trace
Power-off Memory Support
Action Mode Preset/Cruise/Track/Auto Scan/Random Scan
3D Postioning Support
PTZ Position Display Support
Scheduled Task Preset/Cruise/Trace/Random Scan/Boundary Scanning/Dome Reboot

Compression Standard

Video Compression H.265 / H.264 / MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 128Kbps ~ 6Mbps
SVC Support

Smart Features

Basic Event Motion Detection, Video Tampering Detection, Exception
Smart Event Object Removal Detection, Intrusion Detection, Line Crossing Detection, People Intrusion and People Counting
Smart Record ANR (Automatic Network Replenishment)


Max. Resolution 1920×1080
Main Stream 50Hz:25fps(1920×1080, 1280×720), 60Hz:30fps(1920×1080, 1280×720)
Sub Stream 50Hz:25fps(1280×720, D1, CIF), 60Hz:30fps(1280×720, D1, CIF)
Third Stream 50Hz:25fps(D1,  480×240, CIF), 60Hz:30fps(D1,  480×240, CIF)
Image Enhancement WDR/HLC/BLC/3D DNR/Defog/Regional Exposure/Regional Focus


Network Storage Built-in micro SD card slot, up to 128GB
API ONVIF, support TVT API and third-party management platform
Simultaneous Live View Up to 6 channels
User/Host Up to 16 users, 3 levels: Administrator, Advanced User and Normal User
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control;   IP address filtering
Client VMS-9000 Client
Web Browser IE8-11, Chrome 31.0 to 44, Firefox 30.0 to 51


Network Interface 1 RJ45 10M/100M Ethernet, PoE (802.3at, class4)


Power DC12V and PoE (802.3at, class 4); Max.18W
Working Environment -30°C~55°C(-22°F~131°F), ≤ 90% RH
Protection Level IP 66 Standard, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material ADC12, PC, PC+10%GF

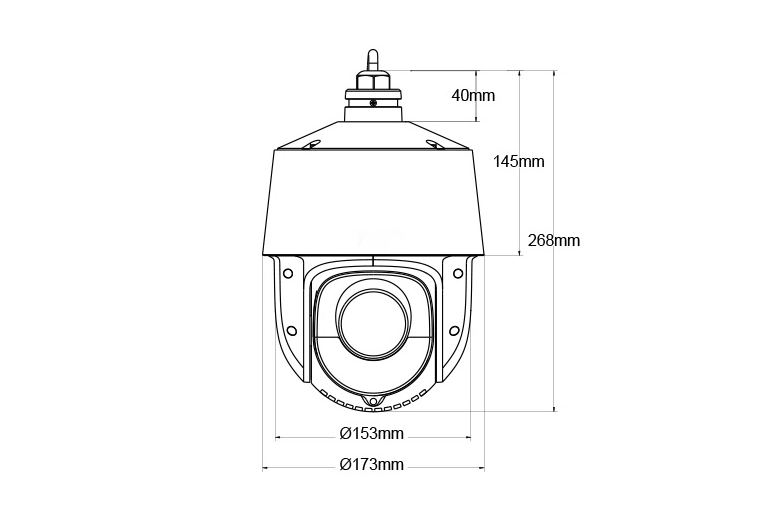

Dimensions Φ 173mm × 247mm (Φ6.8″ × 9.7″)
Weight Approx. 2.1KG (4.63lb)
