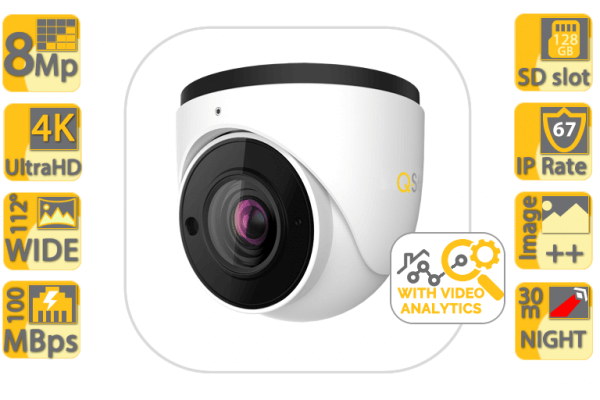

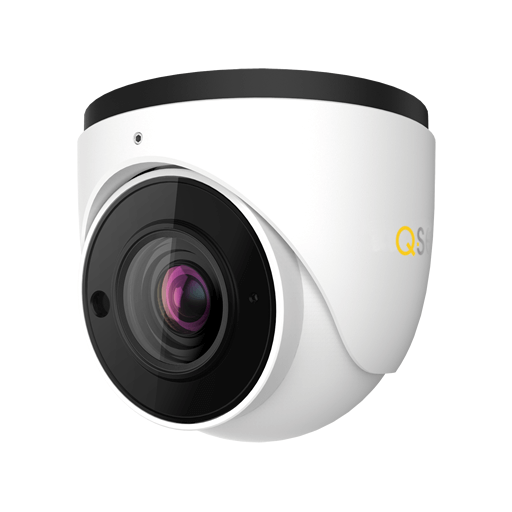

8MP QVP84DS Dome with Analytics

$379.00

Q-See QVP84DS IP Dome Camera : 1/2.7″ 8MP CMOS sensor : 3840×2160 : 8MP @ 20fps : 2.8mm Lens 112° : DWDR/HLC/BLC/DeFog/3DDNR : 20-30M IR Night Vision : H.265 : 1Ch Audio in : 128GB Micro-SD : IP67 : Smart Analytics

Ultra-Wide Angle, 20fps 4K Dome/Turret style camera with Intelligent Video Analytics.

SKU: QVP84DS Categories: ,

Q-See QVP84DS IP Dome Camera : 1/2.7″ 8MP CMOS sensor : 3840×2160 : 8MP @ 20fps : 2.8mm Lens 112° : DWDR/HLC/BLC/DeFog/3DDNR : 20-30M IR Night Vision : H.265 : 1Ch Audio in : 128GB Micro-SD : IP67 : Smart Analytics

Q-See 8MP 4K Ultra High Resolution cameras afford the highest possible clarity, offer the most detail and widest viewing angles.  Don’t be misled with other 8MP cameras that have fields of view of 60° or less and frame rates of less than 12 frames a second.  Instead look a little deeper at the Q-See QVP8xxx range for cameras and compare the specifications.  You will see the Q-See QVP84DS provides an option of the highest order.

Useful for essentially all wide angle deployments the QVP84DS  has an extra wide field of view of 112°, useful for covering gardens, 90° hall way corners, offices, entrance halls, and other general areas.

















Intelligent Video Analytics

Video Analytics Scene Change
Detect if the stable part of a scene permanently changes with adjustable time sensitivities
Video Analytics Blurr Detection
Alert on camera blur detection through fogging, deliberate smearing or otherwise.
Video analytics Intrusion Detection
Alert on motion within a multipoint area to detect movement through a window or an area that is out of bounds etc.
Video Analytics Line Crossing
Provides alerts when objects (usually people) cross a line in either one direction, the other or both.
Video Analytics Object Detection
Detect when an object has been added or removed from a scene. Great for lost item recovery.
Video Analytics Region Enter / Exit
Area intrusion detection function for alerts when part of a specific scene region is used as an entry or exit point. Ideal for FireDoor alerts etc.
Video Analytics Tamper Detection
Detect if a camera is tampered through changed field of view, with masking, blocking, physical damage etc









Smooth 20 fps @5MP and 30 fps @ 4MP



Advanced compression

One concern with the very resolution cameras is their increased network bandwidth and storage requirements. 4K is essentially 400% more dots than standard 1080P High Definition cameras. Therefore bandwidth, processing and storage requirements are likewise 400% larger. To combat this problem the QVP51BS and 54DS cameras support the high compression H.265 CODEC. This reduces bandwidth and storage needs by 50% when compared to H.264.







Advanced image improvement







Smart apps and software



















Match with the next generation Network Video Recorders with built in PoE ports for advanced video smart analysis, remote alerts, storage and plug and play setup.







Specifications

Model

QVP84DS

Camera

Image Sensor 1 / 2.7 “CMOS
Image Size 3840 × 2160
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Iris Type Fixed Iris
Min. Illumination 0.11 lux @F2.2, AGC ON; 0 lux with IR
0.032 lux @ F1.2, AGC ON; 0 lux with IR
Lens 2.8 mm @F2.0, (fixed lens), horizontal field of view: 112°
Lens Mount M12
Wide Dynamic Range Digital WDR
BLC Yes
HLC Yes
Defog Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°


Video Compression H.265 / H.264
H.264 Compression Standard Baseline Profile/Main Profile/High Profile
Resolution 8MP ( 3840 × 2160 ), 6MP ( 3072× 2048 ), 5MP ( 2592 × 1944 ),720P ( 1280 × 720 ), D1, CIF, 480 × 240
Main Stream 8MP/ 6MP/ 5MP(1~20fps)
Sub Stream 720P/D1/CIF (1~20fps)
Third Stream D1/CIF/480×240(1~20fps)
Bit Rate 64 Kbps ~ 8 Mbps
Bit Rate Type VBR / CBR
Audio Compression G711A / U
Image Settings ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
ROI Each ROI to be configured separately

Interfaces

Network RJ45
Video Output No
Audio 1CH built-in MIC; 1CH audio input
Storage Built-in micro SD card slot; up to 128GB
Hardware Reset Yes

Functions

Remote Monitoring Web browsing, CMS remote control
Online Connection Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS
Interface Protocol ONVIF
Storage Network remote storage; micro SD card storage
Smart Alarm Motion detection, SD card error, SD card full
Intelligent Analytics Region intrusion detection, scene change detection and line crossing detection
General Function Watermark, IP address filtering, video mask, heartbeat, illegal login lock
PoE Yes
IR Distance 20 ~ 30 m
Ingress Protection IP 67

Others

Power Supply DC12V/PoE
Power Consumption < 6W
Operating Environment -30 °C ~ 60 °C (-22°F~140°F);Humidity: less than 95 % (non-condensing)

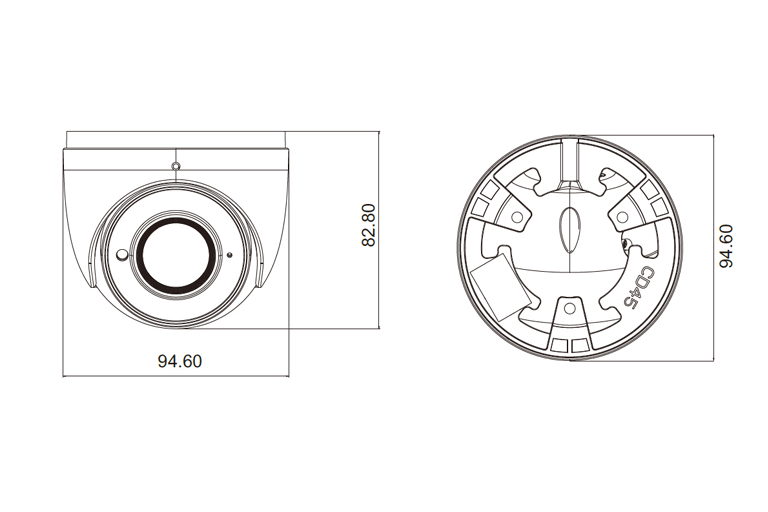

Dimensions ( mm ) Φ 94.6 × 82.8
Weight ( net ) Approx. 0.47KG
Installation Ceiling mounting ( Wall mounting available with the junction box and bracket )
