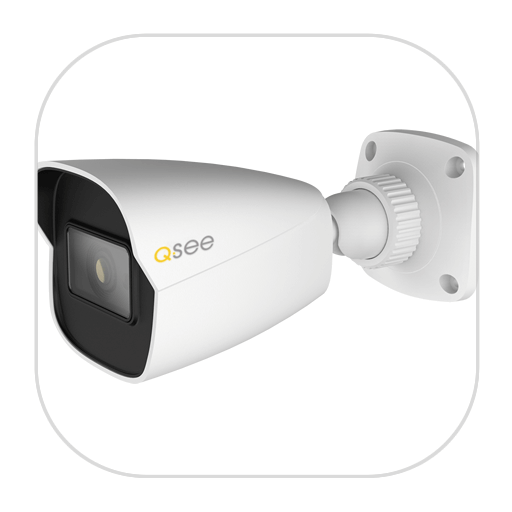

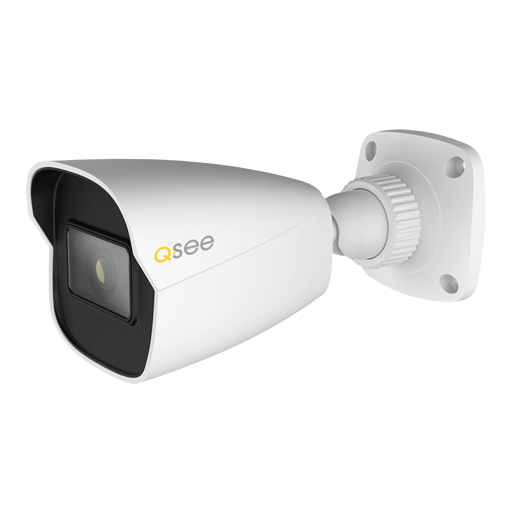

5MP QVP51BS Bullet with Analytics

$279.00

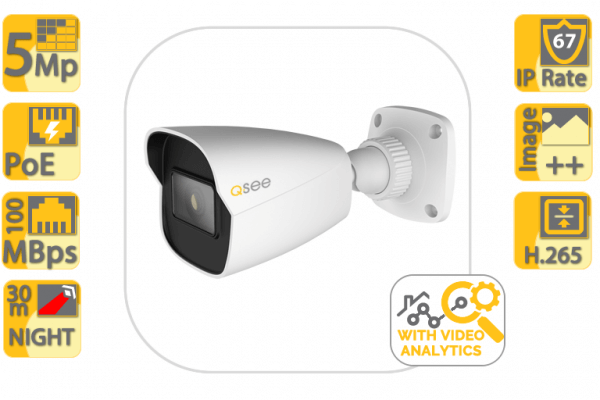

Q-See QVP51BS IP Bullet Camera : 1/2.7″ 5MP CMOS sensor : 2592×1944 : 2.8mm Lens 93.4° : DWDR/HLC/BLC/DeFog/3DDNR : 20-30M IR Night Vision : H.265 : IP67 : Smart Analytics

The new standard in basic IP CCTV with Super HD image technologies.

SKU: QVP51BS Categories: ,

Q-See QVP51BS IP Bullet Camera : 1/2.7″ 5MP CMOS sensor : 2592×1944 : 2.8mm Lens 93.4° : DWDR/HLC/BLC/DeFog/3DDNR : 20-30M IR Night Vision : H.265 : IP67 : Smart Analytics

With the Super-HD clarity, high megapixel count and Intelligent Video Analytics the Q-See 5MP QVP51BS IP camera is the new technical leader for standard commercial, industrial and enterprise deployments.  This cameras reliability, quality, clarity, ease of installation, and neat design is second to none and includes support for the latest H.265 compression standard.  In addition to these great new technical add-ons this camera supports smart image manipulation technologies to improve dramatically the image displayed and recorded.

Useful for essentially all short and medium range applications this camera and its earlier siblings has been deployed by the millions world over. With an extra wide field of view in excess of 90° it is useful for covering offices, entrance halls, and other small areas and front and rear residential yards. It offers extremely high definition images and can be relied upon like no other camera for its price point.











Intelligent Video Analytics

Video Analytics Scene Change
Detect if the stable part of a scene permanently changes with adjustable time sensitivities
Video Analytics Blurr Detection
Alert on camera blur detection through fogging, deliberate smearing or otherwise.
Video analytics Intrusion Detection
Alert on motion within a multipoint area to detect movement through a window or an area that is out of bounds etc.
Video Analytics Line Crossing
Provides alerts when objects (usually people) cross a line in either one direction, the other or both.
Video Analytics Object Detection
Detect when an object has been added or removed from a scene. Great for lost item recovery.
Video Analytics Region Enter / Exit
Area intrusion detection function for alerts when part of a specific scene region is used as an entry or exit point. Ideal for FireDoor alerts etc.
Video Analytics Tamper Detection
Detect if a camera is tampered through changed field of view, with masking, blocking, physical damage etc





Smooth 20 fps @5MP and 30 fps @ 4MP



Advanced compression

One concern with the very resolution cameras is their increased network bandwidth and storage requirements. 4K is essentially 400% more dots than standard 1080P High Definition cameras. Therefore bandwidth, processing and storage requirements are likewise 400% larger. To combat this problem the QVP51BS and 54DS cameras support the high compression H.265 CODEC. This reduces bandwidth and storage needs by 50% when compared to H.264.







Advanced image improvement







Smart apps and software















Match with the next generation Network Video Recorders with built in PoE ports for advanced video smart analysis, remote alerts, storage and plug and play setup.







Specifications

Model

QVP51BS

Camera

Image Sensor 1 / 2.7 “CMOS
Image Size 2592×1944
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Iris Type Fixed Iris
Min. Illumination 0.0236 lux @F2.0, AGC ON; 0 lux with IR
0.0085 lux @ F1.2, AGC ON; 0 lux with IR
Lens 2.8 mm @F1.85, horizontal field of view: 93.4°
3.6 mm @F2.0, horizontal field of view: 79.4°
Lens Mount M12
Wide Dynamic Range Digital WDR
BLC Yes
HLC Yes
Defog Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°


Video Compression H.265 / H.264
H.265 Compression Standard Main Profile@Leve4.1 High Tier
Resolution 5MP ( 2592 × 1944 ), 4MP ( 2560 × 1440 ), 1080P ( 1920 × 1080 ),720P ( 1280 × 720 ), D1, CIF, 480 × 240
Main Stream 60Hz : 5MP(1~20fps)/4MP(1~30fps)/ 1080P(1~30fps)/720P(1~30fps)
50Hz : 5MP(1~20fps)/4MP(1~25fps0)/1080P(1~25fps)/720P(1~25fps)
Sub Stream 60Hz :720P (1~15fps)/D1 (1~30fps)/CIF (1~30fps)
50HZ:720P (1~12fps)/D1 (1~25fps)/CIF (1~25fps)
Third Stream 60Hz : D1/CIF/480×240 (1~30fps)
50HZ: D1/CIF/480×240 (1~25fps)
Bit Rate 64 Kbps ~ 5 Mbps
Bit Rate Type VBR / CBR
Audio Compression No
Image Settings ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
ROI Each ROI to be configured separately

Interfaces

Network RJ45
Video Output No
Audio No
Storage No
Hardware Reset No
Functions
Remote Monitoring Web browsing,CMS remote control
Online Connection Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS
Interface Protocol ONVIF, GB-T/28181-2011
Storage Network remote storage
Smart Alarm Motion detection
General Function Watermark, IP address filtering, video mask, heartbeat, password protection
Intelligent Analytics Object removal detection, abnormal video signal detection, intrusion detection and line crossing detection (optional)
PoE Yes
IR Distance 20 ~ 30 m
Ingress Protection IP67

Others

Power Supply DC12V/PoE
Power Consumption < 5W
Operating Environment -30 °C ~ 60 °C (-22°F~140°F),Humidity: less than 95 % (non-condensing)

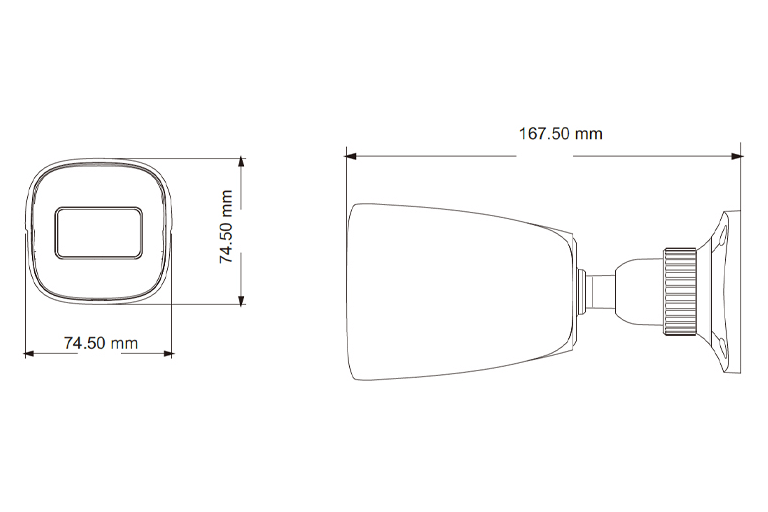

Dimensions ( mm ) 167.5 × 74.5 × 74.5
Weight ( net ) Approx. 0.38KG
Installation Ceiling mounting; Wall mounting
