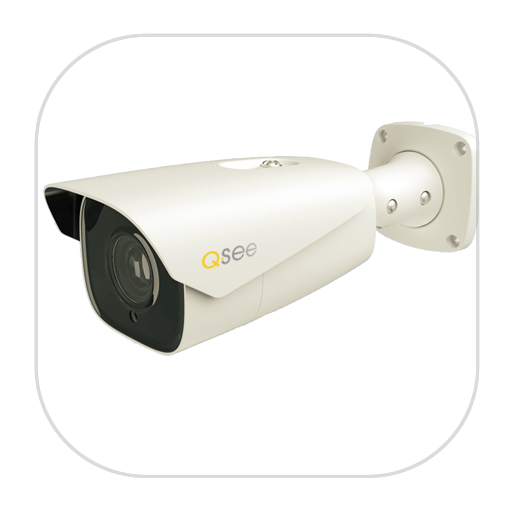

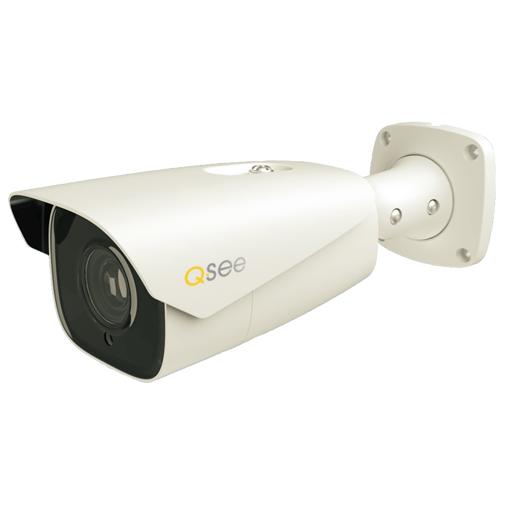

Q-See QVP23BLR AI Auto Number Plate Reader (ANPR) Bullet : 0-70km/h : 1/2.8″ 2MP CMOS sensor : 1920×1080 : Motorzoom 7-22mm : 120dB WDR : BLC : HLC : 3D DNR : Defog : Smart H.265/265+ : 1Ch Audio in&out : 128GB Micro-SD : IP67 : 50-70m IR : Smart Analytics
Prior to the advent of intelligent cameras at the edge of networks license plate recognition was performed centrally on expensive servers with expensive software. Now times have change as advanced Automatic Number Plate Recognition (ANPR) intelligence has moved from the server to the camera. Cameras that can rapidly be deployed at a low cost throughout your surveillance network.
The Q-See QVP23BLR advanced license place recognition (LPR) camera supports list matching in the camera (up to 10,000 record list) with triggered actions and full feature connectivity to the Q-See AI-NVR range, QT-VUE apps and QT-VIEW software for vehicles traveling at up to 70km/h.
Key Camera Features
QVP23BLR

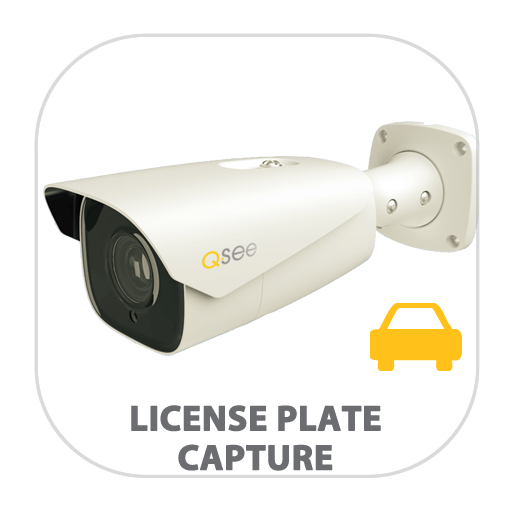

- Artificial Intelligence Vehicle Licence/Number Plate Recognition engine
- Snapshot with overview and cutout of plate
- 10,000 whitelist entries on camera (no AI-NVR, NVR or Server required)
- Capture speed of 0-70km/h
- 2MP 1920×1080 real time triple stream
- Exceptional Electronic Shutter Speed of 1 / 25 s ~ 1 / 100000 s
- Motorised Zoom 7~22mm for 17.6° ~ 44° field of view
- Large Capacity night vision and Starlight modes up to 100m IR
- IP67 ingress protection
- 3D DNR, True 120dB WDR, HLC, BLC and ROI
- Smart H.265/H.265+ supported
- Double frame rate (HFR) mode supported at 60fps and 50fps
- 1CH alarm input and 1CH alarm output
- 1CH audio input; 1CH audio output
- Micro SD slot – Up to 128GB
- PoE and DC12V
- Mobile App direct to camera with P2P
- Intelligent Video Analytics for video tamper and scene change
Advanced Image Features
Smart apps and software
Match with the next generation Network Video Recorders with built in PoE ports for advanced video smart analysis, remote alerts, storage and plug and play setup.
Specifications
Model |
QVP23BLR |
Camera |
|
| Image Sensor | 1 / 2.8 “CMOS |
| Image Size | 1920 × 1080 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | DC Iris |
| Min. Illumination | 0.0026 lux@F1.2,AGC ON; 0 lux with IR |
| 0.005 lux@F1.6, AGC ON; 0 lux with iR | |
| Lens | 7~22mm@F1.6, motorized |
| Field of View | H: 44°~17.6°; V:25.6°~10°; D: 49.7°~20.2° |
| Lens Mount | Φ14 |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
Image |
|
| Video Compression | Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 60Hz : 1080P / 720P( 1 ~ 30fps ) |
| 50Hz : 1080P / 720P( 1 ~ 25fps ) | |
| HFR Mode: 1080P/720P (60Hz: 1~60fps; 50Hz: 1~50fps) | |
| Sub Stream | 60Hz : 720P/D1/CIF/480×240 (1~30fps); |
| 50HZ: 720P/D1/CIF/480×240 (1~25fps) | |
| Third Stream | 60Hz : D1/CIF/480×240 (1~30fps) |
| 50HZ: D1/CIF/480×240 (1~25fps) | |
| Bit Rate | 64 Kbps ~ 6 Mbps |
| Bit Rate Type | VBR / CBR |
| Audio Compression | G711A / U |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen NR,etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
Interfaces |
|
| Network | RJ45 |
| Video Output | No |
| Audio | 1CH audio input; 1CH audio output |
| Storage | Built-in micro SD card slot; up to 128GB |
| Reset | Yes |
| Alarm | 1CH alarm input; 1CH alarm output |
| RS 485 | No |
| Functions | |
| Remote Monitoring | Web browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Storage | Network remote storage; micro SD card storage |
| Smart Alarm | Motion detection, sensor alarm, SD card error, SD card full, IP address conflict, cable disconnection |
| Intelligent Analytics | Video tampering detection, scene change detection, license plate recognition |
| General Function | Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion correction |
| PoE | Yes , IEEE802.3af |
| IR Distance | 70~100m |
| Protection Grade | IP67 |
LPR |
|
| Snapshot | Overview and cutout of plate for picture |
| White List | 10000 |
| Capture Speed Range | 0~70km/h |
| Others | |
| Power Supply | DC12V/PoE |
| Power Consumption | < 11W |
| Operating Environment | – 30 °C ~ 60 °C (-22°F~140°F) |
| Humidity: less than 95 % (non-condensing) | |

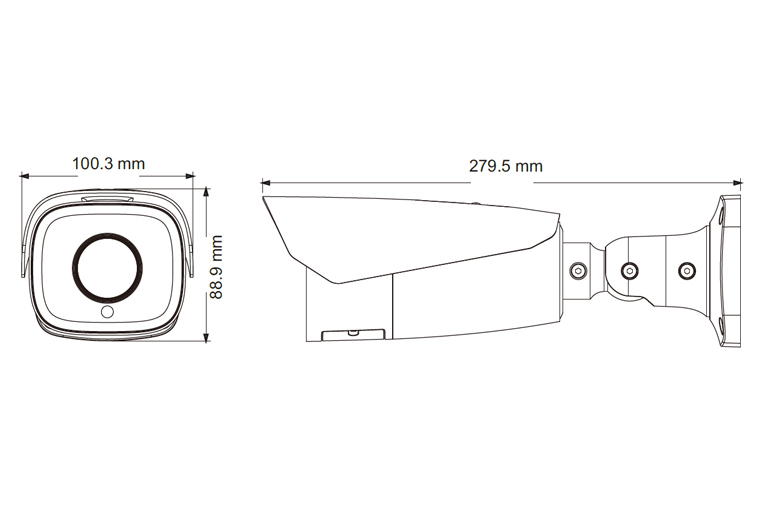

| Dimensions ( mm ) | 279.5 × 100.3 × 88.9 |
| Weight ( net ) | Approx. 1.04KG |
| Installation | Ceiling mounting; Wall mounting |
