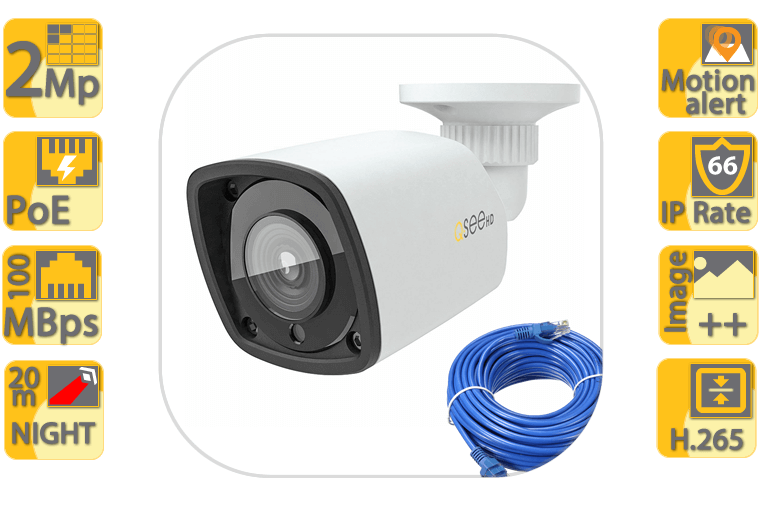

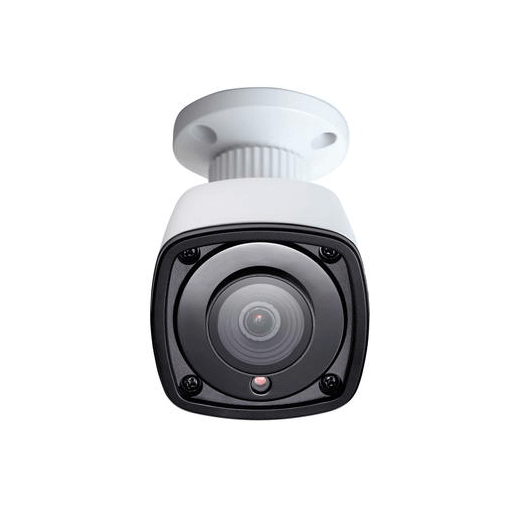

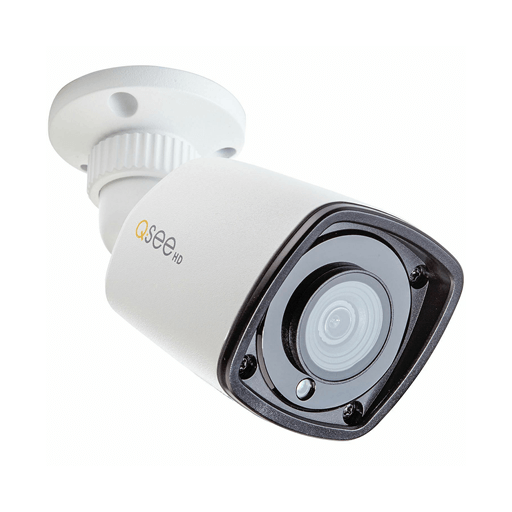

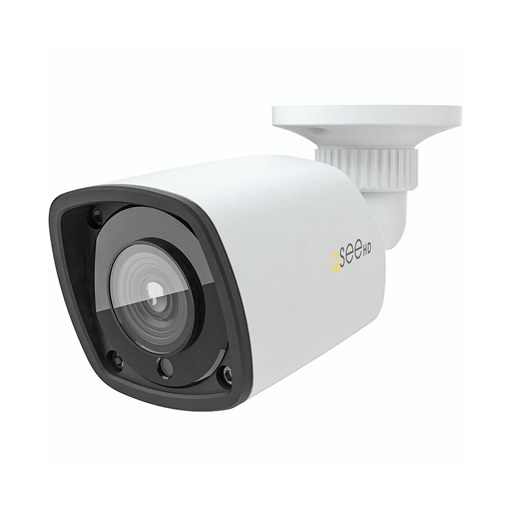

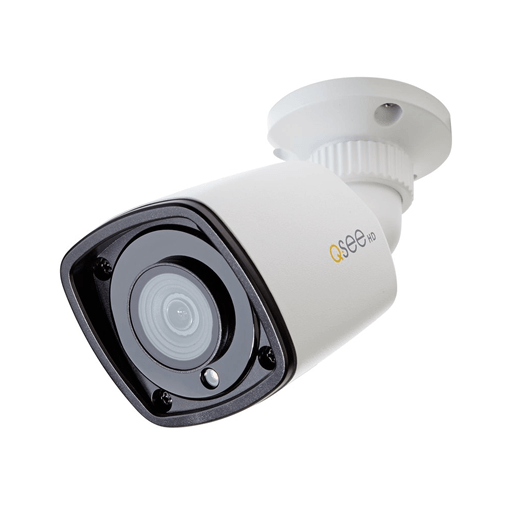

Q-See QTN8015C IP Bullet Camera : 1/2.8″ 2MP CMOS sensor : 1920×1080 : 30fps : 3.6mm Lens : 10-20M IR Night Vision : H.265 : IP66
The Q-See 2MP QTN8015C IP Bullet camera is new for 2019. It is a low impact high definition fixed lens camera which can be mounted at any angle including under eaves, on walls or inside. The QTN8015C while similar to the QTN8015B has a new case styling, H.265 advanced compression and a slightly wider field of view better. In short range setups this sleek little camera is ideal for home, commercial and small business deployments where basic HD resolution is all that is required.
In the era of 4MP, 5MP, 8MP and soon 12MP the question must be asked – why still use a 2MP IP camera? Other than the clear financial fact (2MP is cheaper) the answer is also practical. 2MP HD cameras are ideal still for covering close in smaller areas like offices, entryways and narrow byways where the scene is near by to the camera and digital zoom would not likely be required. They are perfect for front door close in coverage where the field of view is recording images only a few meters from the camera or side gates.
The Q-See QTN8015C may be aggressively priced but its still has many advanced features include ICR Auto Switch, True Day / Night,3D DNR,Digital WDR and ROI coding with support for P2P, direct DC12V Power Supply or PoE and a built-in Web Server. It will connect to any Q-See NVR, CMS or VMS. Call us – we can explain!
One concern with the very large image capture cameras is their increased network bandwidth and storage requirements. 4K is essentially 400% more dots than standard 1080P High Definition cameras. Therefore bandwidth, processing and storage requirements are likewise 400% larger. To combat this problem the new 2019 generation of IP cameras from Q-See now support the high efficiency video coding compression algorithm called the H.265 CODEC. H.265 reduces bandwidth and storage needs by 50% when compared to the older H.264 codec.
With the Q-See QTN8015C H.265 double compression is now available in a 2MP HD camera for even longer NVR storage times.
Plug and Play connections and advanced mobile apps
Match the Q-See QTN8015B with the next generation Network Video Recorders form Q-See like the QT874, QT878 and QT816 for quick and easy plug and play setup. Power for the QTN8015B-AU is supplied via the Power Over Ethernet ports on the rear of those NVRs. A separate DC12V connector is also available if you would like to supply direct local power to the camera.
Digital Wide Dynamic Range
Get a clear view in less than ideal conditions
Advanced Detection, Image Presentation and Setup
Match the Q-See QTN8015C with the next generation Network Video Recorders form Q-See like the QT874, QT878 and QT816 for quick and easy plug and play setup. Power for the QTN8015B-AU is supplied via the Power Over Ethernet ports on the rear of those NVRs. A separate DC12V connector is also available if you would like to supply direct local power to the camera.
Specifications
Model |
QTN8015C |
| Image Sensor | 1 / 2.8 “CMOS |
| Image Size | 1920×1080 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.007 lux @F1.2 / AGC ON; 0 lux with IR |
| Lens | 3.6mm @F2.0 / horizontal field of view: 94° |
| Lens Mount | M12 |
| Day & Night | ICR |
| Wide Dynamic Range | Digital WDR |
| BLC | No ( See QTN8086B if required) |
| HLC | No ( See QTN8086B if required) |
| Defogging | No ( See QTN8086B if required) |
| Digital NR | 2D / 3D DNR |
| Angle Adjustment | Any angle |
Image |
|
| Video Compression | H.265, H.264 BP / MP / HP, MJPEG |
| H.265 Standard | Main Profile @ Level 4.1 High Tier |

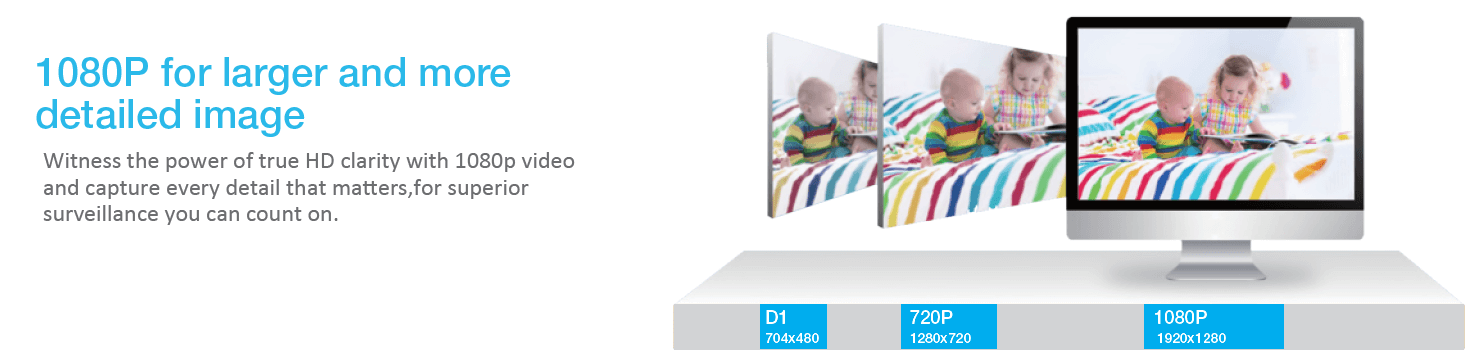

| Resolution | 1080P 2MP ( 1920×1080 ) / 720P 1.3MP ( 1280×720 ) / D1 & CIF (480×240) |
| Main Stream 60Hz | 1080P ( 1 ~ 30fps ) / 720P ( 1 ~ 30fps ) |
| Main Stream 50Hz | 1080P ( 1 ~ 25fps ) / 720P ( 1 ~ 25fps ) |
| Bit Rate | 256 Kbps ~ 5 Mbps |
| Bit Rate | Type VBR / CBR |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI / Saturation / Brightness / Chroma / Contrast / Wide Dynamic / Sharpen / NR /etc. Adjustable through client software or web browser |
| Audio Compression | No |
| ROI | Yes |
Interfaces |
|
| Network | RJ45 10M / 100M self-adaption |
| Audio | No |
| Video | No separate CVBS output |
Functions |
|
| Remote Monitoring | IE browsing /CMS remote control |
| IE browsing / CMS remote control | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocols | TCP / IP / UDP / DHCP / NTP / R Network Protocol TSP / PPPoE / DDNS / SMTP / FTP |
| Interface Protocol | ONVIF |
| Storage | Network remote storage to other QT-View NVRs/VSSs |
| Smart Alarm | Motion alarm |
| Smart Analysis | No |
| PoE | Yes |
| IR Distance | 10 ~ 20 m |
| Ingress Protection | IP66 |
Others |
|
| Power Supply | DC12V / PoE |
| Power Consumption | < 3W |
| IR Consumption ON | < 5.5W |
| Operating Environment | – 30°C ~ 60°C / <95 % relative humidity non-condensing |
| Dimensions | (mm) 70×156 |
| Weight (net) | 358g |
| Installation | Wall mounting / ceiling mounting for any angle. Easy adjust twist lock-screw style |
