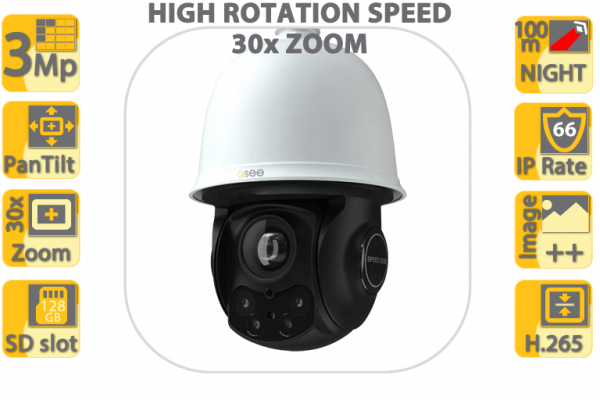

Q-See QVP330Z IP PTZ Camera : 3MP 1/2.8″ CMOS sensor : 5″ Dome : 30X 4.5-135mm Zoom : 25fps@2048×1536 : 100M IR Night Vision : H.265 : 3D DNR : Digital WDR : 8xCruise 360xPreset 2xScans 4xTracks : SD Card : IP66/TVS6KV : HIGH SPEED : Intelligent Preset Ready
Q-See QVP330Z offers a 50% higher pixel resolution count and double the rotation speed vs the QVP220PZ with an increased 30x optical zoom. It features Image++ enhancement, a 30x 4.5-135mm motorised zoom and 100 meter InfraRed night vision.
Q-See PTZ cameras can be preset with up to 360 position settings and can support 8 cruise paths with up to 16 preset stop points in each cruise. PTZ Cruise is sometimes referred to as “race track”.
In addition you may enhance the PTZ coverage with intelligent preset tracking when matched with an AI-NVR and triggers sent from static wide area non-ptz cameras. The static cameras jump the PTZ to preset zones identified by their Intelligent Video Analytic events. This type of setup is very advanced and offers the ultimate in perimeter and wide area protection.
Advanced compression
One concern with the very resolution cameras is their increased network bandwidth and storage requirements. 4K is essentially 400% more dots than standard 1080P High Definition cameras. Therefore bandwidth, processing and storage requirements are likewise 400% larger. To combat this problem the QVP51BS and 54DS cameras support the high compression H.265 CODEC. This reduces bandwidth and storage needs by 50% when compared to H.264.
Advanced image improvement
Smart apps and software
Match with the next generation Network Video Recorders with built in PoE ports for advanced video smart analysis, remote alerts, storage and plug and play setup.
Specifications
Model |
QVP330Z |
Camera |
|
| Image Sensor | 1 / 2.8″ Progressive CMOS |
| Effective Pixels | 2048 × 1536 |
| Horizontal Resolution | 1300 TVL |
| Min. Illumination | 0 Lux |
| IR Distance | 100 m |
| White Balance | Auto / Manual |
| WDR | 120dB |
| S / N Ratio | Max 48dB |
| Day / Light | Auto / Manual |
| Focus Mode | Auto / Manual |
| Lens | 30× Zoom, f = 4.5 ~ 135 mm, F1.6 ~ F4.4 |
PTZ |
|
| Pan Range | 360° endless rotation |
| Pan Speed | Preset speed : 150 °/s; Manual control speed : 0.5 ~ 80 °/s |
| Tilt Range | 0 ~ 93° ( auto rotation ) |
| Tilt Speed | Preset speed : 120 °/s; Manual control speed : 0.5 ~ 70 °/s |
System |
|
| PTZ Control | Yes |
| Preset | 360 |
| Cruise | 8 |
| Track | 4 |
| Time Task | 8 |
| Scan | 2 |
| Home Position | Yes |
| Auto Flip | Yes |
| OSD Menu | English |
| Alarm Input | 1 |
| Alarm Output | 1 |
| Alarm Linkage | Yes |
Network |
|
| Compression | H.265 |
| Frame Rate | 1 ~ 30fps ( 25 fps ) |
| Protocol | TCP / IP, UDP, DHCP, DDNS, NTP, RTSP, SMTP, FTP, PPPoE |
| Storage | SD card local storage, network remote storage |
| Smart Alarm | Motion Alarm, Sensor Alarm |
| Resolution | 3MP (2048 × 1536 ), 1080P ( 1920 × 1080 ),720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Multi-stream | Yes |
Port |
|
| Network Interface | 10 Base-T / 100 Base-TX, RJ45 |
| Audio | MIC input × 1, MIC output × 1 |
Others |
|
| Control | Network |
| Power Supply | DC 24V / 2500 mA |
| Power Consumption | 15 W ( max 30W, IR on ) |
| Working Environment | Temperature : – 30 °C ~ 60 °C; Humidity : less than 95% |
| Protection Level | IP66; TVS 6KV lightning protection, surge protection |
| Net Weight | 3.77KG |
| Gross Weight | 5.84KG(without bracket) |
| Dimensions ( mm ) | Φ 209 × 317 |
