4MP QTN8044D Varifocal Intelligent Video Analytics Dome

$579.00

Q-See QTN8044D IP Dome Camera : 1/3” 4MP CMOS sensor : 2560×1440 : 3.3-12mm Varifocal Lens : 30-50M IR Night Vision : H.265 : IP66 & IK10 : CVBS-Out (BNC) : Mic-In : Mic-Out : RS485 : Physical WDR 120dB : 3D DNR : Highlight & Backlight Compensation (HLC & BLC) : Auto Gain : ICR : 1Ch Alarm-In 1x Ch Alarm-Out : 128GB Micro SD : 1008g : Φ115×114 mm : Smart Video Analytics

SKU: QTN8044D-AU Category:

Q-See QTN8044D IP Dome Camera : 1/3” 4MP CMOS sensor : 2560×1440 : 3.3-12mm Varifocal Lens : 30-50M IR Night Vision : H.265 : IP66 & IK10 : CVBS-Out (BNC) : Mic-In : Mic-Out : RS485 : Physical WDR 120dB : 3D DNR : Highlight & Backlight Compensation (HLC & BLC) : Auto Gain : ICR : 1Ch Alarm-In 1x Ch Alarm-Out : 128GB Micro SD : 1008g : Φ115×114 mm : Smart Video Analytics

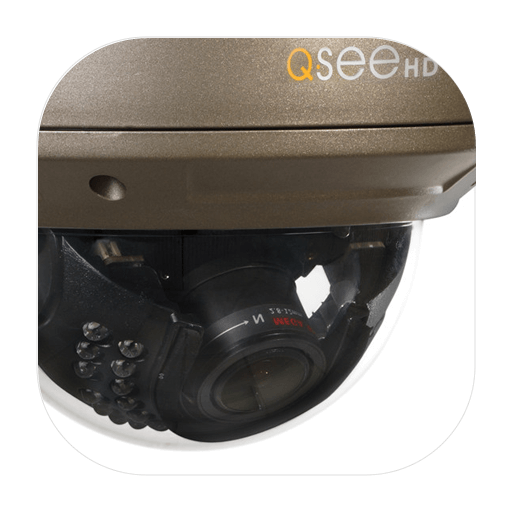

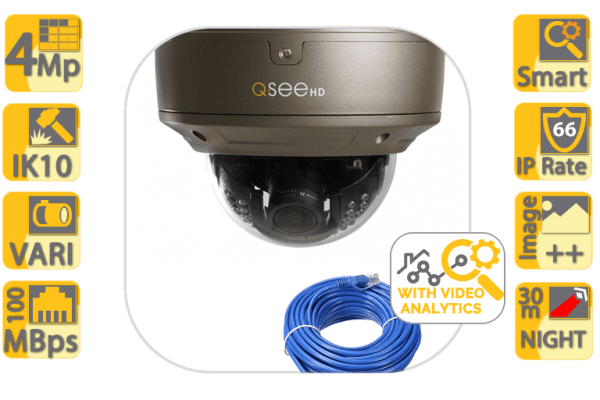

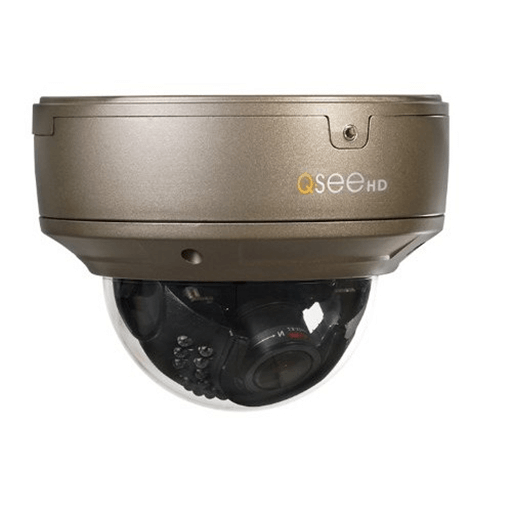

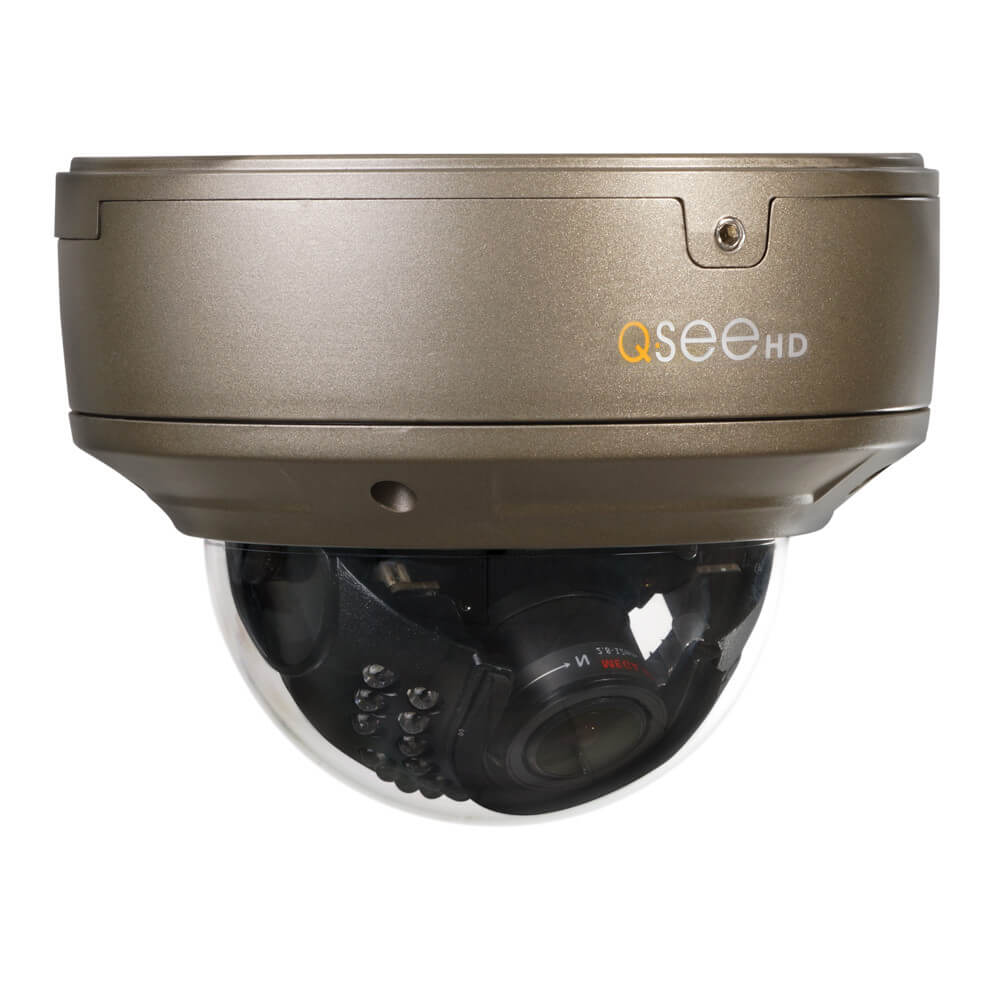

The Q-See QTN8044D is a commercial grade variable focus camera that can be mounted on a wall, ceiling or on a pendent style pole for fantastic visual deterrence.  It is one of the most versatile cameras available with Super High Definition 4MP resolution in a 16:9 format. The QTN8043B and 8044D are two of our biggest selling cameras for professional enterprise applications.  In a single word – they are “versatile”.

This cameras versatility comes about from the adjustable focal range for field of view control, Wide Dynamic Range, Dynamic Noise Reduction, multi-stream real time transmission and maximum inputs and outputs.  The camera supports the full Q-See feature set including image settings for saturation, brightness, Chroma, contrast, wide dynamic range, noise reduction and sharpening all adjustable through NVR software, client apps or a web browser.

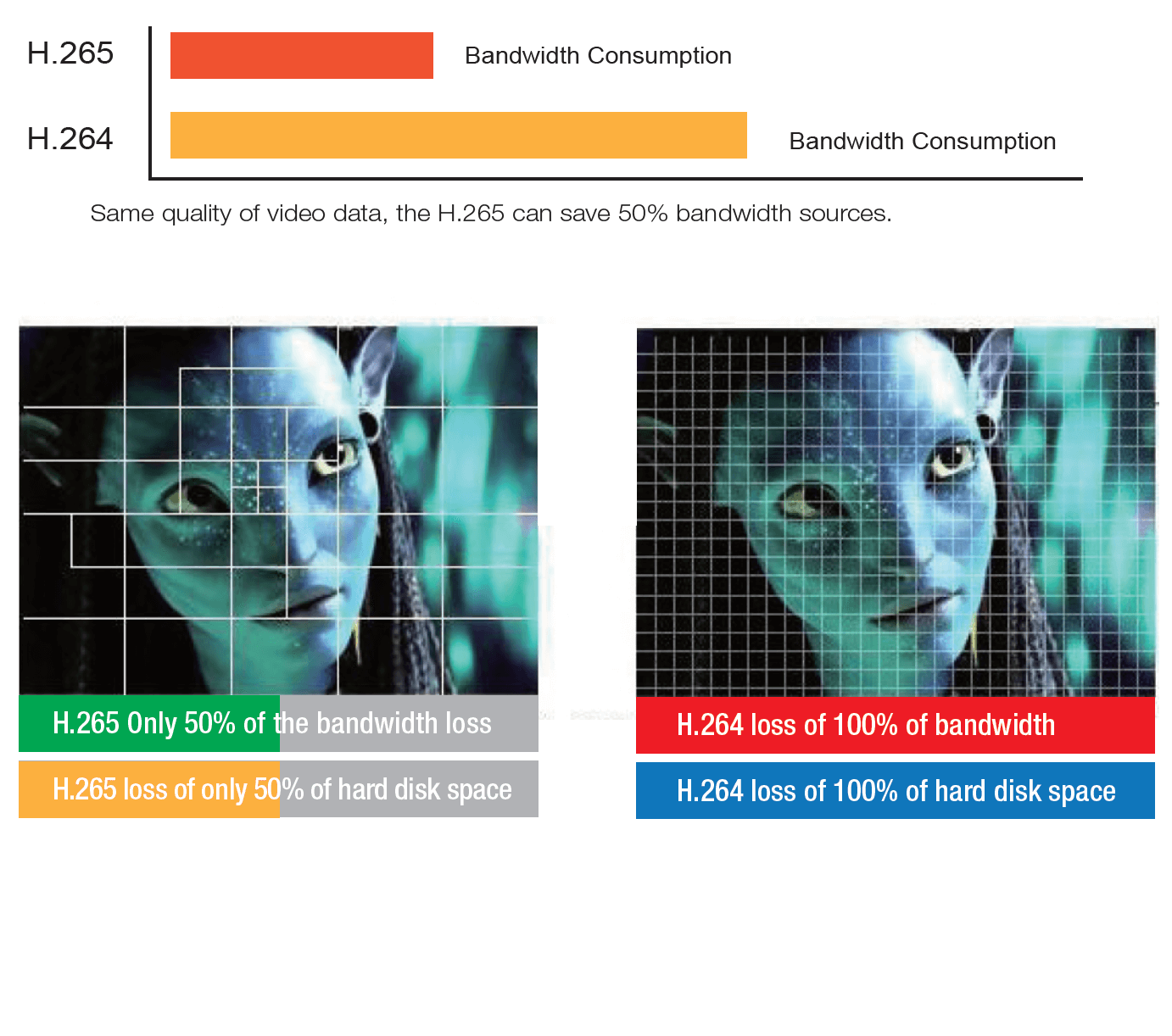

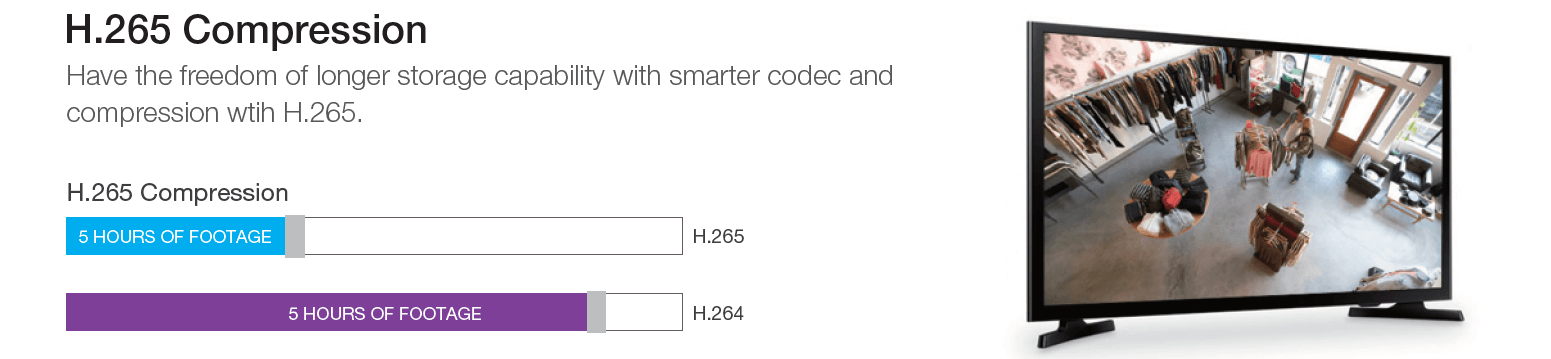

With support for H.265 the storage requirements are also minimized and are typically half of the H.264 requirement.

This camera has a 4.0 MP 8139+OV4689 OV sensor, records in the more modern 16:9 format and has 3D DNR, digital WDR and ROI coding.  The 3.3 to 12mm varifocal lens allows for the field of view to be adjusted from 38° to 80° so that the 4MP video capture can be directed exactly as required.

The extensive inputs and outputs of this camera include microphone in and out (please consider national, state and territory laws regarding audio surveillance before attaching a microphone), CVBS Analog camera output (via standard BNC) for Analog DVR connection and/or local configuration, 1x channel Alarm sensor input, 1x channel Alarm Sensor output and RS485 for PTZ controls.  With built in Web Server and Compact Flash support up to 64GB this camera can operate stand alone without a NVR.

The QTN8044D camera has the highest possible Vandal Proof / Impact Proof Rating possible (IK10) and has recessed allen key access bolts for installation making removal and tamper very difficult.  Ideal for public areas.





Intelligent Video Analytics

Video Analytics Scene Change
Detect if the stable part of a scene permanently changes with adjustable time sensitivities
Video Analytics Blurr Detection
Alert on camera blur detection through fogging, deliberate smearing or otherwise.
Video analytics Intrusion Detection
Alert on motion within a multipoint area to detect movement through a window or an area that is out of bounds etc.
Video Analytics Line Crossing
Provides alerts when objects (usually people) cross a line in either one direction, the other or both.
Video Analytics Object Detection
Detect when an object has been added or removed from a scene. Great for lost item recovery.
Video Analytics Region Enter / Exit
Area intrusion detection function for alerts when part of a specific scene region is used as an entry or exit point. Ideal for FireDoor alerts etc.
Video Analytics Tamper Detection
Detect if a camera is tampered through changed field of view, with masking, blocking, physical damage etc



























Specifications

Model

QTN8044D
Image Sensor 1 / 3 “CMOS
Image Size 2688 × 1520
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Auto Iris Fixed Iris
Min. Illumination 0.05 lux @F1.2,AGC ON; 0 lux with IR
Lens 3.3 ~ 12 mm @F1.4, angle of view: 80° ~ 38°
Lens Mount Φ14
Day & Night ICR
Wide Dynamic Range 120dB (Physical WDR)
BLC Yes
Day & Night Yes
HLC Yes
Defogging 2D / 3D DNR
Angle Adjustment Pan : 0°~360°, Tilt : 0°~77°, Rotation : 0°~360


Video Compression H.265 / H.264 / MJPEG
H.265 Compression Main Profile @Leve4.1 High Tier

Standards

Resolution 4MP ( 2592×1520 ), 2K (2560×1440) , 3MP ( 2304×1296 ),
1080P ( 1920×1080 ), 720P ( 1280×720 ), D1, CIF, 480×240
Main Stream 60Hz: 4MP (1~30fps) / 2K (1~30fps) / 3MP (1~30fps) / 1080P (1~30fps) / 720P(1~30fps)
50Hz: 4MP (1~25fps) / 2K (1~25fps) / 3MP (1~25fps) / 1080P (1~25fps) / 720P(1~25fps)
Bit Rate 64 Kbps ~ 10 Mbps
Encode Mode VBR / CBR
Quality Five levels under VBR; Freely adjustable under CBR
Image Settings ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic,Sharpen, NR,etc.
adjustable through client software or web browser
Audio Compression G711A / U
ROI Each ROI to be configured separately

Interface

Network RJ45
Audio MIC IN × 1, MIC OUT × 1
Video Output CVBS video output ( BNC × 1 )
Storage Card Support TF card, up to 128GB
RS485 Yes
Alarm Input 1 CH
Alarm Output 1 CH

Functions

Remote Monitoring IE browsing,CMS remote control
Online Connection Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocol TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
Interface Protocol ONVIF, GB-T/28181-2011
Storage 128GB Micro-SD, network remote storage to QT NVRs
Smart Alarm Motion alarm, sensor alarm
Smart Analysis People Count, Tripwire, Intrusion Detection and Object Detection, Scene Change
PTZ RS485 × 1
PoE Yes
IR Distance 20 ~ 30 m
Water-proof IP66 (Ingress Protection Rating)
Impact-Rating IK10 (Impact Protection Rating) (Vandal Resistance Rating)

Others

Power Supply     DC12V / PoE
DC12V / PoE    < 2.5W
IR Consumption ON    < 5W
Operating Environment     -20 °C ~ 50 °C,10 % ~ 90 % humidity
Dimensions ( mm )     Φ150 × 114
Weight ( net )     1030g
Installation      Pendent mounting ( Wall mounting available with the junction box and bracket )
