4MP SHD QTN8047B Intelligent Video Analytics Bullet

$199.00

Q-See QTN8047B IP Bullet Camera : Super High Definition : 1/2.7″ 4MP CMOS sensor : 2560×1440 : 3.6mm Lens : 10-20M IR Night Vision : H.265 : IP67 : Intelligent Video Analytics

The QTN8047B is the latest Intelligent Videoa Analytics camera for home and small business.  It is Plug-and-Play compatibility with all Q-See NVRs and DIY IP PoE kits.

SKU: QTN8047B-AU Category:

Q-See QTN8047B IP Bullet Camera : Super High Definition : 1/2.7″ 4MP CMOS sensor : 2560×1440 : 3.6mm Lens : 10-20M IR Night Vision : H.265 : IP67 : Intelligent Video Analytics

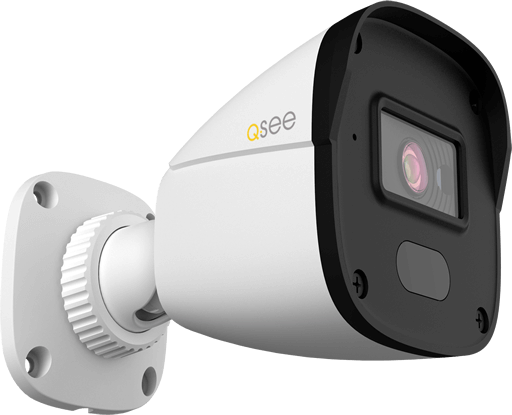

The Q-See 4MP Super-HD QTN8047B IP Bullet is a low impact high definition fixed lens camera which can be mounted at any angle including under eaves, on walls or inside.  With its medium range night vision it’s ideal for filling in close gaps long range cameras struggle with.  This sleek little camera is ideal for home, commercial and small business deployments where Super-HD resolution is desired.

The Q-See QTN8047B includes all the modern, essential Intelligent Video Analytics functions required to dramatically reduce annoying false positive alerts so you can really utilize your external building cameras for security alerts.

Combine with the QT878 NVR for home and small business for the perfect security solution for 4 to 8 cameras.  See the Q-See QT878-4RQ-1-AU bundle DIY kit.





Intelligent Video Analytics

The QT878/3332x-x/3364x-x/35128-16A2 all support the new range of Video Analytic Cameras from Q-See such as the QTN8047B,  QNT8053D and QTN8098B.

Video Analytics Scene Change
Detect if the stable part of a scene permanently changes with adjustable time sensitivities
Video Analytics Blurr Detection
Alert on camera blurr detection through fogging, deliberate smearing or otherwise.
Video analytics Intrusion Detection
Alert on motion within a multipoint area to detect movement through a window or an area that is out of bounds etc.
Video Analytics Line Crossing
Provides alerts when objects (usually people) cross a line in either one direction, the other or both.
Video Analytics Object Detection
Detect when an object has been added or removed from a scene. Great for lost item recovery.
Video Analytics Region Enter / Exit
Area intrusion detection function for alerts when part of a specific scene region is used as an entry or exit point. Ideal for FireDoor alerts etc.
Video Analytics Tamper Detection
Detect if a camera is tampered through changed field of view, with masking, blocking, physical damage etc



The QTN8047B has all the latest image improvement technologies including ICR Auto Switch, True Day / Night,3D DNR, Digital WDR and ROI coding with support for P2P, direct DC12V Power Supply or PoE and a built-in Web Server.  It will connect to any Q-See NVR, CMS or VMS.  Call us – we can explain why all these things are great!











Available from:

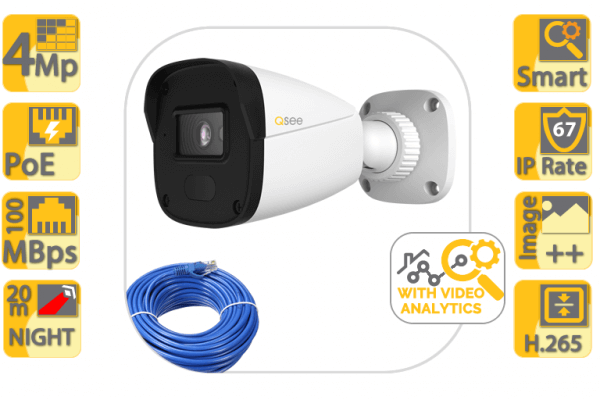

Expand your Q874-xxx-1-AU or QT878-xxx-1-AU DIY home CCTV kits with these advanced IP over Ethernet cable bullet cameras from Q-See Australia.  Each QTN8047B-AU comes bundles with the camera and an 18m Ethernet cable for power and video signal.  Expand your Ethernet cable up to 100 meters with ease.



https://www.mitre10.com.au/catalogsearch/result/?q=q-see





































Match the Q-See QTN8047B with the next generation Network Video Recorders form Q-See like the QT874, QT878 and QT816 for quick and easy plug and play setup.  Power for the QTN8047B-AU is supplied via the Power Over Ethernet ports on the rear of those NVRs.  A separate DC12V connector is also available if you would like to supply direct local power to the camera.







Specifications

Model

QTN8047B
Image Sensor 1 / 2.7 “CMOS
Image Size 2560×1440
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Iris Type Fixed Iris
Min. Illumination 0.011 lux @F1.2 / AGC ON; 0 lux with IR : 0.04 lux @ F2.26, AGC ON; 0 lux with IR
Lens 3.6mm @F1.6 / horizontal field of view: 89°
Lens Mount M12
Day & Night ICR
Wide Dynamic Range Digital WDR
BLC Yes
HLC Yes
Defogging Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0° ~360° : Tilt: 0°~80° : Rotation: 0°~360°


Video Compression H.265 Main Profile@Leve4.1 High Tier : H.264 BP / MP / HP : MJPEG
Resolution 4MP 1440P ( 2560 × 1440 ) : 3MP ( 2304 × 1296 ) : 2MP 1080P ( 1920 × 1080 ) : 720P ( 1280 × 720 ) : D1 : CIF : 480 × 240
Main Stream 60Hz:4MP(1~20fps)/3MP(1~30fps)/1080P(1~30fps) : 50Hz:4MP(1~20fps)/3MP(1~25fps)/1080P(1~25fps)
Sub Stream 60Hz : 720P(1~15fps)/D1(1~30fps)/CIF (1~30fps) : 50HZ: 720P(1~12fps)/D1(1~25fps)/CIF (1~25fps);
Third Stream 60Hz : D1/CIF/480×240 (1~30fps); 50HZ: D1/CIF/480×240 (1~25fps)
Bit Rate 64 Kbps ~ 5 Mbps
Bit Rate Type VBR / CBR
Quality Five levels under VBR; Freely adjustable under CBR
Image Settings ROI / Saturation / Brightness / Chroma / Contrast / Wide Dynamic / Sharpen / NR /etc. Adjustable through client software or web browser
Audio Compression No
ROI Each ROI to be configured separately

Interfaces

Network RJ45 10M / 100M self-adaption
Audio No
Video No separate CVBS output

Functions

Remote Monitoring IE browsing /CMS remote control
IE browsing / CMS remote control Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocols TCP / IP / UDP / DHCP / NTP / R Network Protocol TSP / PPPoE / DDNS / SMTP / FTP
Interface Protocol ONVIF
Storage Network remote storage to other QT-View NVRs/VSSs
Smart Alarm Motion alarm
Smart Analysis Object detection / tripwire detection / intrusion detection / scene exception / abnormal video detection
PoE Yes
IR Distance 10 ~ 20 m
Ingress Protection IP67

Others

Power Supply DC12V / PoE
Power Consumption < 2W
IR Consumption ON < 4W
Operating Environment – 20°C ~ 50°C /10 % ~ 90 % relative humidity
Dimensions 162.1 x 74.8 x 73.8 (mm)
Weight (net) 240g
Installation Ceiling mount : Wall mount
