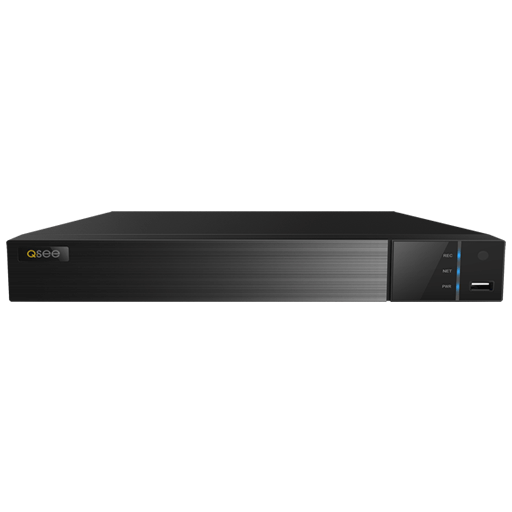

16 Ch QVN3316P-2 AI-NVR 8 POE

$799.00

Q-See QVN3316P-2 AI-NVR : 5000 Facial Records @ 180 pic/min : 16 Channel : 8MP 3840×2160 : 160Mbps : 10/100/1000 : 16CH Playback : 8x PoE : 2x SATA : H.265 : 1x HDMI-4K-Out : VGA-Out : 1x USB2.0 : 1x USB 3.0 : 1.5RU : 8x Alarm-In : 4x Alarm-Out : 1.5U : Face Detection : Face Recognition : Perimeter People/Car/Bike : People Counting : People Density : Deep Learning

The Q-See QVN3316P-2 is a new generation NVR with Artificial Intelligence (AI), Deep Learning (DL) and Intelligent Video Analytics (IVA) support for up to 16 8MP Ultra HD cameras.  Mix standard IP cameras, Intelligent Video Analytics IP cameras and Facial Recognition IP cameras for a dynamic, intelligent, high security solution with direct plug and play connection to 8 POE ports.

SKU: QVN3316P-2 Category:

Q-See QVN3316P-2 AI-NVR : 5000 Facial Records @ 180 pic/min : 16 Channel : 8MP 3840×2160 : 160Mbps : 10/100/1000 : 16CH Playback : 8x PoE : 2x SATA : H.265 : 1x HDMI-4K-Out : VGA-Out : 1x USB2.0 : 1x USB 3.0 : 1.5RU : 8x Alarm-In : 4x Alarm-Out : 1.5U : Face Detection : Face Recognition : Perimeter People/Car/Bike : People Counting : People Density : Deep Learning



This is the new generation Artificial Intelligence Facial Recognition Network Video Recorder from Q-See International. It is feature packed with the latest technology for Video Surveillance perfectly suited for commercial use with 16 channel, 5000 record 180 pictures/min processing capacity for the facial recognition engine.

Match with Q-See Intelligent Video Analytics, Facial Recognition, Face Detection and Perimeter Alert cameras for the most advanced video surveillance solution possible today.





With support for up to 16x 8 Megapixel cameras but more typically up to 8 with the built in PoE ports the Q-See QVN3316P-2 is the ideal AI-NVR for deployment into retail, smaller commercial and industrial locations. As part of the Q-See range this recorder can be controlled by a central Camera Management Server (CMS) for robust, reliable remote video monitoring.

Add Q-See QAPE high power over Ethernet switches for distributed camera deployments. Please see here: https://www.q-see.com.au/product-category/accessories/

Key Features:

Q-See QVN3316P-2

  • 16 Channel 8MP Resolution at 3840×2160 per camera
  • Support for 8MP / 6MP / 5MP / 4MP / 3MP / 2MP / 1.3MP / 1MP / 960P / 960H / D1 / CIF
  • Support for Intelligent Video Analytics cameras events – object abandoned/missing, region intrusion, tripwire & video tamper
  • Support for Facial Recognition and AI with 5000 facial database / remote site sync / 180 pic per min compute capacity / statistics, search & list alarm alert / 32 libraries
  • 8x RJ45 PoE ports for direct camera connection via Cat5e or Cat6 Ethernet cabling
  • Support for both H.264 and the latest H.265 compression CODECs for high quality video at maximum compression
  • ONVIF 2.3 conformance
  • 4K output for true ultra high def viewing. HDMI x1 (4Kx2K 1920×1080 & 1280×1024) VGA x1 (1920×1080 & 1280×1024)
  • 16 channel simultaneous playback
  • 160Mbps total network access bandwidth processing capacity
  • 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P @ 25 and 30fps
  • Dual stream recording with manual, timer, motion and sensor based triggering
  • Dual stream recording technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
  • 16 channel local alarm input and 4 channel output
  • 1x 10/100/1000 RJ45 Ethernet LAN port
  • TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x support
  • Up to 2x SATA 3.5″ drives
  • 1x USB 2.0 and 1x USB 3.0 port
  • Remote control
  • ATX 292W PSU
  • ≤15W power consumption + PoE and hard drive power
  • 380 x 268 x 45 mm (W x D x H)



Smart Video Analytics

The QVN33xxP-x NVRs all support the new range of Video Analytic Cameras from Q-See such as the QTN8086B.

Video Analytics Scene Change
Detect if the stable part of a scene permanently changes with adjustable time sensitivities
Video Analytics Blurr Detection
Alert on camera blur detection through fogging, deliberate smearing or otherwise.
Video analytics Intrusion Detection
Alert on motion within a multipoint area to detect movement through a window or an area that is out of bounds etc.
Video Analytics Line Crossing
Provides alerts when objects (usually people) cross a line in either one direction, the other or both.
Video Analytics Object Detection
Detect when an object has been added or removed from a scene. Great for lost item recovery.
Video Analytics Region Enter / Exit
Area intrusion detection function for alerts when part of a specific scene region is used as an entry or exit point. Ideal for FireDoor alerts etc.
Video Analytics Tamper Detection
Detect if a camera is tampered through changed field of view, with masking, blocking, physical damage etc





Facial Recognition Ready with A.I.

The QVN3316P-2 NVRs supports connectivity with up to 16 AI Facial Detection and Recognition cameras and has the added benefit of supporting FR from standard IP cameras with its built in Artificial Intelligence facial recognition engine.  Store up to 5,000 records and synchronize that data with nine other remote AI-NVRs.  For larger deployments synchronize an unlimited number of records across any number of AI-NVRs with a QTView Video Surveillance server in a central data center.



Facial Detection for alerts, statistics and marketing
Recognise individuals for statistical analysis, database storage, deep search, list matching, marketing and alerts
Match recognition data to different lists with high accuracy then take action. Set off alarms, receive shapshots, open doors etc
Match faces, report, receive alerts and take actions in real time. No processing delay
Receive alerts for banned customers or gold class customers or anything in between
Simple management of AI-NVR database records. Import, export and update with NVR GUI, Mac, PC or mobile
Maintain detailed information against each facial analytics record for search, statistics and marketing
Advanced A.I "Smart Search" features allow you to rapidly scan for faces across multiple camera recordings and time windows
Face tracking across multiple AI-NVRs in remote locations from multiple camera records and time frames
Statistics engine allows for analysis and investigation of activity levels and detailed reports for marketing teams
Responsive marketing can react to the capture category of a face in real time
Full management features with the QTView app. Perform all functions from your mobile
Search for any record field across all recordings from your NVR, Mobile or PC
Search for an uncategorised face by image across all recordings from your NVR, Mobile or PC
Playback face search matches anytime, anywhere with your mobile





H.265 Compression

The QVN3316P-2 support up to 2 SATA storage drives up to 10TB capacity which, when combined with the newest H.265 compression codec, ensures this unit is more than able to record and store the highest quality video feeds from 2 to 8MP cameras. Backup can be added to the standard USB 3.0 port.

The H.265 new generation video codec requires half the storage of the older H.264 compression.



HDMI-4K 8MP Ultra High Definition Input and Output

The QVN3316P-4 NVR supports up to 256Mbps of video stream aggregate bandwidth for camera streams in full 25fps 8MP 3840×2160 resolution. This input can be fully displayed on any UHD 4K display, TV or monitor.



Output is via 1 HDMI-4Kx2K port, 1 HDMI-1K port and a standard VGA port. These can be used in a variety of ways to distribute the displays in various modes across multiple display devices. HDMI extenders and splitters can be used.







Q-See’s QT View for IPHONE, IPAD and ANDROID SMARTPHONES puts the power of peace-of-mind literally at your fingertips. Designed to work with our QT-series security DVR and NVRs, QT-View allows you to check in on your property, business or loved ones anywhere, at any time. Receive instant e-mail alerts and see what’s going on with the swipe of a finger.

View live feeds from up to four cameras simultaneously. QT View takes full advantage of touch-screen technology to allow you to add or change video feeds, play back video or even control a pan-tilt-zoom camera . You can even take still images and save them on your phone or send them as e-mail attachments.





Specifications

Model

QVN3316P-2

System OS Embedded Linux
Video IP Video Input 16CH IPC input
Incoming Bandwidth 160Mbps
Outgoing Bandwidth 160Mbps
IP Video Input Resolution 8MP/ 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
Output 1xHDMI-4K: 3840×2160@60fps/3840×2160@30fps/1920×1080/ 1280×1024/1024×768 | 1xVGA: 1920×1080 / 1280×1024 / 1024×768
Compression Standard H.265/H.264
Audio Network Input 16 CH IPC audio input
2-way Audio RCA × 1
Local Output RCA × 1
Compression G.711 (A/U)
Record Record Stream Dual stream recording
Resolution 8MP/ 6MP/5MP/4MP/3MP/1080P/1280×1024/960P/720P/960H/D1/CIF
Frame Rate NTSC: 30fps; PAL:25fps
Mode Manual, timer, motion, sensor, smart events
Playback Simultaneous Playback Max 16 CH
Search Time slice / time / event / tag search
Smart Search Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
Function Play, pause, FF, FB, digital zoom, etc.
Decoding Capability Live View/ Playback 1CH 8MP / 4CH 1080P
Alarm Mode Manual, sensor, motion, exception, smart events
Input 8 CH local alarm input; supports IPC alarm input
Output 4 CH
Triggering Record, snap, preset, e-mail, etc.
Face Channel 16 CH
Face Picture Database 32 libraries / 5000 Face Pictures
Computing Capability 180 pictures / minute
Face Picture Search Search by picture is supported
Database Management Add, modify, delete and search face pictures
Face Picture Adding Add face pictures through APP, WEB and external import
External face picture enrollment Resolution:128 x 128~ 1920 x 1080 Size:≤ 70KB | Format : jpg&jpeg
Face Picture Comparison Supports allow list and block list alarm
Face Track Yes
Map of Face Track Resolution:≤ 2560 x 1920 Size:≤ 512KB | ‘Format : jpg&jpeg
Statistic Graph of Face Information Bar graph
Statistic Mode of Face Information Statistics by day, week, month, quarter as well as customized time period
Network Interface RJ 45 1000 Mbps × 1
PoE Port RJ 45 × 8 (IEEE802.3af; output power: ≤ 80W)
Protocol TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x
Mobile Device OS iOS, Andriod
Storage HDD Interface SATA × 2, max 8T per HDD
Backup Local Backup U disk, USB mobile HDD
Network Backup Yes
Port RS 485 Yes (full-duplex), connect to PTZ or keyboard
USB USB 2.0 × 1, USB 3.0 × 1
Remote Controller Optional
Others Power Supply DC48V/2.5A
Consumption ≤ 15W ( without HDD and PoE power supply )
Dimensions (mm) 380 × 268× 45 ( W × D × H )
Work Environment -10 ~ 50 ℃,10% ~ 90% humidity
