128 Ch QT90128 IP VSS

Q-See QT90128 VSS : 128 Channel : 8MP 3840×2160 : 320Mbps : 2x 10/100/1000 : 8x SATA :RAID 0, RAID 1, RAID 5, RAID 6, RAID 10: H.265 : 1x HDMI-4K-Out, 1x HDMI-Out : VGA-Out : Alarm 8x In 4x out : 2x eSATA : 3RU

The Q-See QT90128 Video Surveillance Server is designed to sit at the center of advanced CCTV networks.  It can aggregate video feeds from cameras and other remote NVRs, distribute storage across multiple storage pools, share storage with other NVRs and VSSs, integrate Video Analytic Cameras and offer maximum uptime and reliability.

SKU: QT90128-AU Category:

Q-See QT90128 VSS : 128 Channel : 8MP 3840×2160 : 384Mbps : 2x 10/100/1000 : 16x SATA : H.265 : 1x HDMI-4K-Out, 1x HDMI-Out : VGA-Out : Alarm 8x In 4x out : 2x eSATA : 3RU

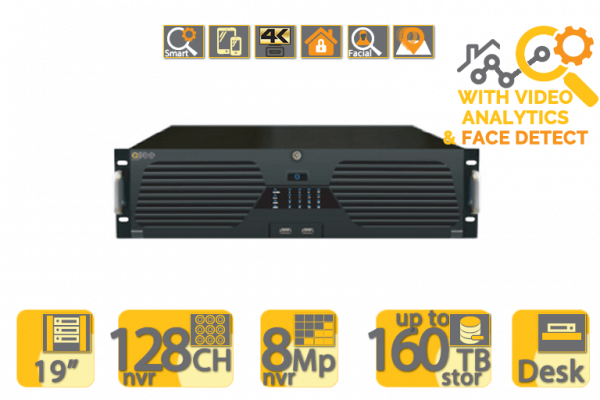

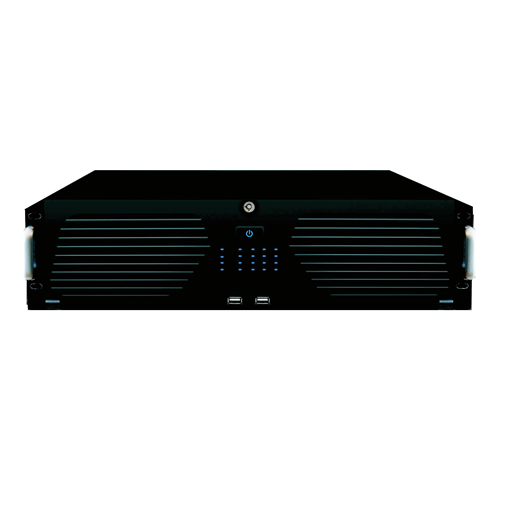

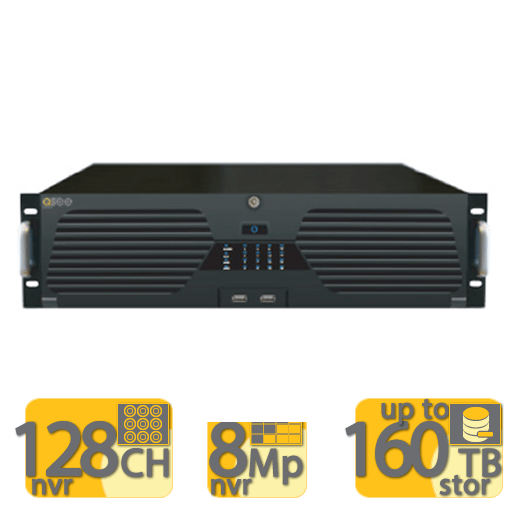

The QT90128 is the newest generation, largest capacity Video Surveillance Server (VSS) from Q-See with support for 128 8MP cameras and 16x hot swapable hard drive units.  It is feature packed with the latest technology for Video Surveillance perfectly suited for Australian Enterprise and Government use.

With support for up to 128 8 Megapixel cameras the Q-See QT90128 is the ideal VSS for deployment into commercial and industrial locations with large camera requirements.  As part of the Q-See Enterprise/Government range this recorder can be controlled by a central QT-View Video Management Server distributed storage and robust, reliable remote video management and monitoring

Key Features:

Q-See QT90128

  • 128 Channel 8MP Resolution at 3840×2160 per camera
  • Support for both H.264 and the latest H.265 compression CODECs for high quality video at maximum compression
  • ONVIF 2.3 conformance
  • 4K output for true ultra high def viewing.  HDMI x2 (1x of 4Kx2K, 2x of 1920×1080 & 1280×1024) VGA x1 (1920×1080 & 1280×1024)
  • 16 channel simultaneous playback
  • 384Mbps total network access bandwidth processing capacity
  • 8MP/ 5MP / 4MP / 3MP / 1080P / 960P / 720P @ 25 and 30fps
  • Dual stream recording with manual, timer, motion and sensor based triggering
  • 8 channel local alarm input and 4 channel output
  • 2x 10/100/1000 RJ45 Ethernet LAN port in dual or redundant mode
  • TCP/IP, PPPoE, DHCP, DNS, DDNS, uPnP, NTP and SMTP support
  • Up to 16x SATA 3.5″ drives
  • RAID Type RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
  • Optional eSATAx2 expansion ports
  • 2x USB 2.0 and 1x USB 3.0 port
  • Remote control
  • ≤15W power consumption + hard drive power
  • 3RU
  • 437 × 483 × 143 (W×D×H)
  • Special order item – may require up to 4 weeks for delivery

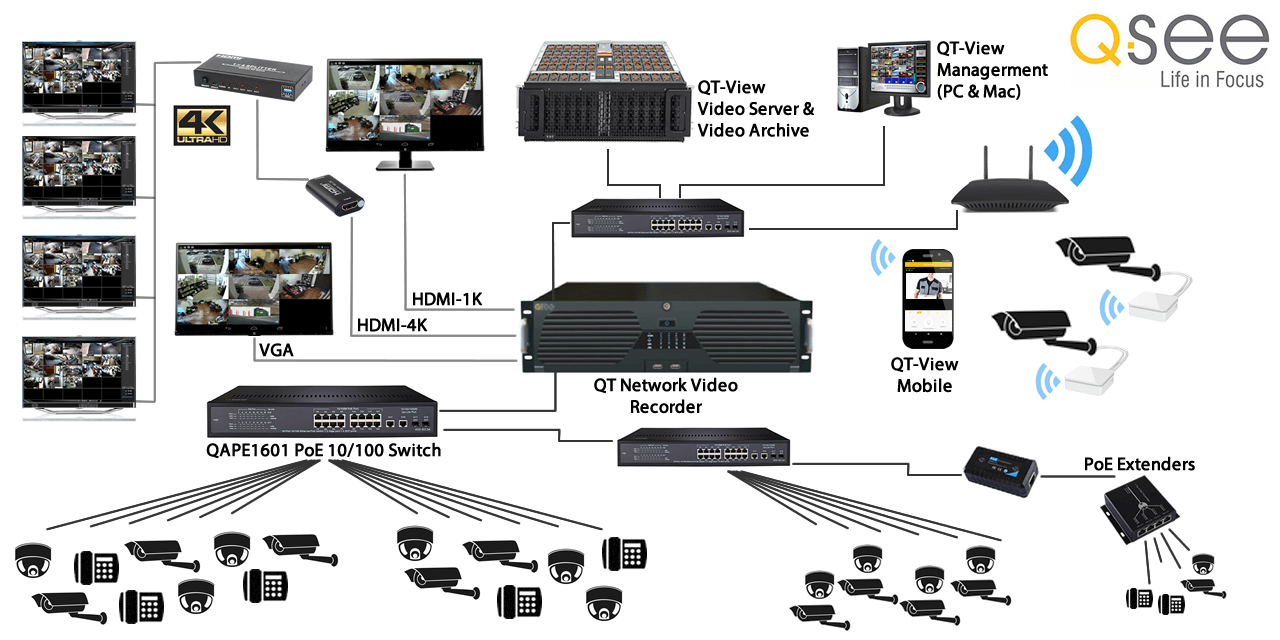

The QT90128 is designed for deployments of many cameras typically distributed over large areas.  As such camera power and Ethernet switching is typically provided by dedicated and distributed PoE access switches, PoE range extenders and PoE splitters.  Ethernet and IP design is an important consideration and a free consultation is recommended for the design, installation and configuration of switches.  Q-See access switches are available in 8, 16 and 24 ports to aggregate cameras and back haul to the QT90128.

H.265 Compression

The QT90128 supports up to 16 SATA hot swapable storage drives with RAID0, RAID1, RAID5, RAID6 and RAID10.  Each surveillance grade drive can be up to 10TB capacity for 160TB total drive capacity which when combined with the newest H.265 compression codec ensures this unit is more than able to record and store the highest quality video feeds from 2 to 8MP cameras.  Backup can be added via optional eSATA drives and eSATA drive arrays in addition to the standard USB 3.0 port.

The H.265 new generation video codec requires half the storage of the older H.264 compression .



HDMI-4K 8MP Ultra High Definition Input and Output

The QT90128 VSS supports up to 384Mbps of video stream aggregate bandwidth.  This allows for camera streams in full 25fps 8MP 3840×2160 resolution.  This input can be fully displayed on any UHD 4K display, TV or monitor.



Output is via 1 HDMI-4Kx2K port, 1 HDMI-1K port and a standard VGA port.  These can be used in a variety of ways to distribute the displays in various modes across multiple display devices.  HDMI extenders and splitters can be used.







Q-See’s QT View for IPHONE, IPAD and ANDROID SMARTPHONES puts the power of peace-of-mind literally at your fingertips.  Designed to work with our QT-series security DVR and NVRs, QT-View allows you to check in on your property, business or loved ones anywhere, at any time. Receive instant e-mail alerts and see what’s going on with the swipe of a finger.

View live feeds from up to four cameras simultaneously. QT View takes full advantage of touch-screen technology to allow you to add or change video feeds, play back video or even control a pan-tilt-zoom camera . You can even take still images and save them on your phone or send them as e-mail attachments.

Smart Video Analytics

The QT878/816/8732/8764/90128 all support the new range of Video Analytic Cameras from Q-See such as the QTN8086B.

Video Analytics Scene Change
Detect if the stable part of a scene permanently changes with adjustable time sensitivities
Video Analytics Blurr Detection
Alert on camera blurr detection through fogging, deliberate smearing or otherwise.
Video analytics Intrusion Detection
Alert on motion within a multipoint area to detect movement through a window or an area that is out of bounds etc.
Video Analytics Line Crossing
Provides alerts when objects (usually people) cross a line in either one direction, the other or both.
Video Analytics Object Detection
Detect when an object has been added or removed from a scene. Great for lost item recovery.
Video Analytics Region Enter / Exit
Area intrusion detection function for alerts when part of a specific scene region is used as an entry or exit point. Ideal for FireDoor alerts etc.
Video Analytics Tamper Detection
Detect if a camera is tampered through changed field of view, with masking, blocking, physical damage etc



Specifications

Model
QT90128
System Compression
Standard H.265
Main Processing Chip
ARM Cortex A17
OS
Embedded Linux
Video Network Access Bandwidth
384Mbps
Input Resolution 8MP、5MP、4MP、3MP、1080P、960P、720P real time
Network Access
128 CH IPC input
Output HDMI×2:oneof3840×2160/1920×1080/1280×1024 theotherof1920×1080/1280×1024 VGA×1:1920×1080/1280×1024
Audio Input
128 CH IPC audio input
2-way Audio
RCA×1
Local Output
RCA×1
Record Resolution
8MP、5MP、4MP、3MP、1080P、960P、720P
Frame Rate
25fps/30fps(PAL/NTSC)
Bite Stream
32Kbps-12Mbps
Image Quality
5 Level
Playback Simultaneous Playback
Max 16 CH
Network Interface
RJ45 10/100/1000 Mbps × 2
Network Protocol TCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP、ONVIF、GB28181
Storage HDD
SATA×16(Hotswap RAID 0/1/5/6/10),eSATA×1
Max Capacity for 1 single HDD
10T surveillance grade
Backup USB Backup
Yes
eSata Backup
Yes

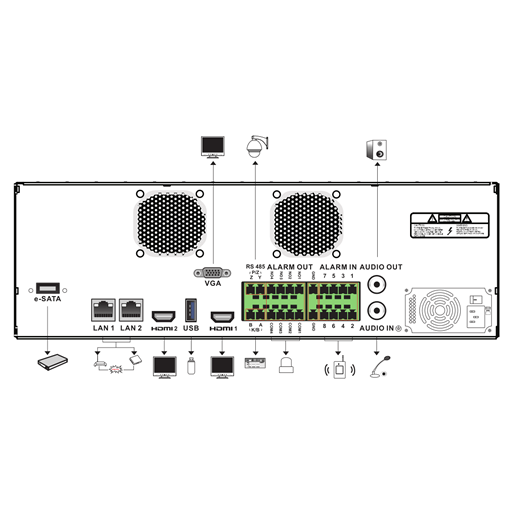

Interface Alarm In
8
Alarm Output
4
Communication
RS485×2, connect to PTZ and keyboard
Remote
No
USB USB2.0×2( front panel ), USB3.0×1( rear panel )
Others Case
3U
Dimensions(mm )
437×483×143(W×D×H)
Power Supply
ATX
Consumption
≤ 30W ( without HDD )
Work Environment
-10 ~ 50 ℃,10% ~ 90% humidity
