16 Ch QVN3116P-2 NVR 16 POE

$849.00

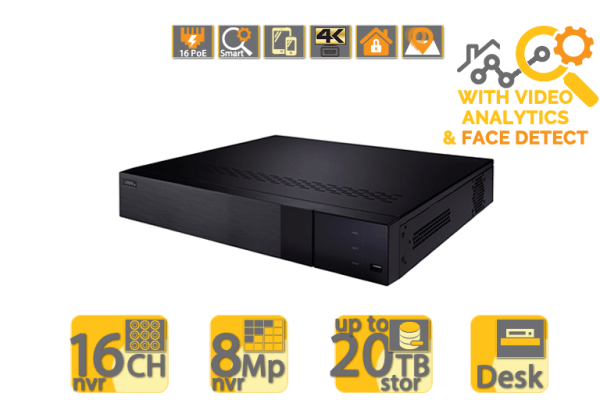

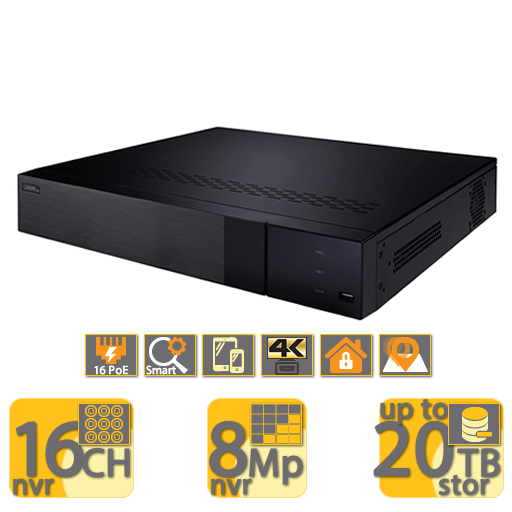

Q-See QVN3116P-2 NVR : 16 Channel : 8MP 3840×2160 : 112Mbps : 10/100/1000 : 16CH Playback : 16x PoE : 2x SATA : H.265 : 1x HDMI-4K-Out : VGA-Out : 2x USB2.0 : 1RU : 380x268x45 mm

The Q-See QVP3116P-2 16PoE NVR is the stand out workhorse network video recorder for business and commercial applications up to 16 cameras.  With support for up to 16 8MP 4K cameras and Advanced Video Analytic camera compatibility this NVR offers a long product life span.

Plug and Play your cameras with the 16 built in Power Over Ethernet ports.

SKU: QVP3116P-2 Category:

Q-See QVN3116P-2 NVR : 16 Channel : 8MP 3840×2160 : 112Mbps : 10/100/1000 : 16CH Playback : 16x PoE : 2x SATA : H.265 : 1x HDMI-4K-Out : VGA-Out : 2x USB2.0 : 1RU : 380x268x45 mm

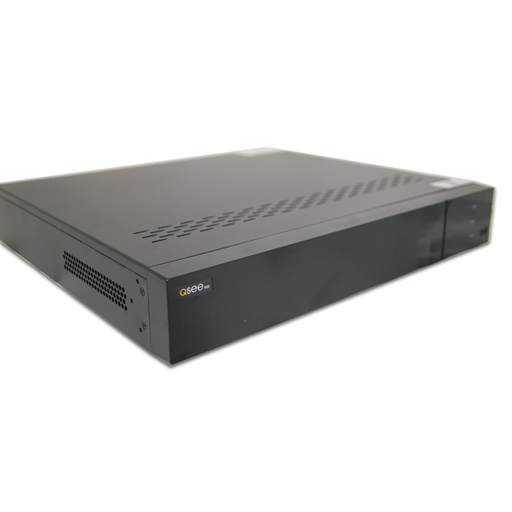

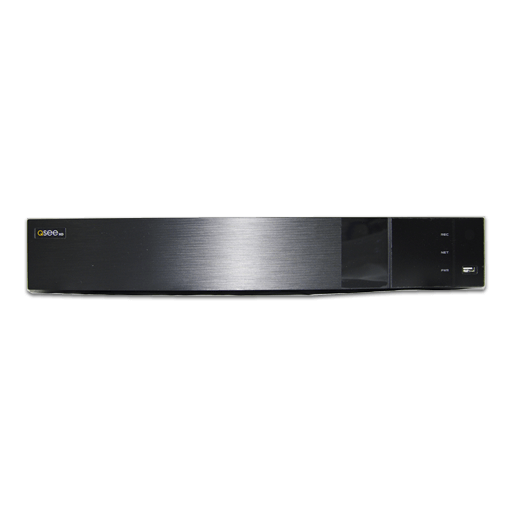

This is the new generation workhorse Network Video Recorder feature packed with the latest technology for Video Surveillance perfectly suited for Australian small business use.





With support for up to 16x 8 Megapixel cameras directly connected to the 16 built in Power Over Ethernet ports the Q-See QVN3116P-2 is the ideal NVR for deployment into smaller commercial and industrial locations.  As part of the Q-See range this recorder can be controlled by a central Camera Management Server (CMS) for robust, reliable remote video monitoring and supports the full Q-See QT View software ecosystem.

Key Features:

Q-See QVN3116P-2

  • 16 Channel 8MP Resolution at 3840×2160 per camera
  • 16x RJ45 PoE ports for direct camera connection via Cat5e or Cat6 Ethernet cabling
  • Support for both H.264 and the latest H.265 compression CODECs for high quality video at maximum compression
  • ONVIF 2.3 conformance
  • 4K output for true ultra high def viewing.  HDMI x1 (4Kx2K 1920×1080 & 1280×1024) VGA x1 (1920×1080 & 1280×1024)
  • 16 channel simultaneous playback
  • 112Mbps total network access bandwidth processing capacity.  112Mbps incoming and 112Mbps simultaneous outgoing
  • Support for Intelligent Video Analytics and Face Detection cameras with object abandoned/missing, region intrusion, tripwire, video tamper and Face Detect alerts
  • 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P @ 25 and 30fps
  • Dual stream recording with manual, timer, motion and sensor based triggering
  • Support for IPC Alarm input and Output
  • 1x 10/100/1000 RJ45 Ethernet LAN port
  • 16x 10/100 RJ45 Power Over Ethernet ports with IEEEE802.3af support
  • TTCP/IP / PPPoE / DHCP / DNS / DDNS / UPnP / NTP / SMTP / HTTP / HTTPs & 802.1x support
  • Up to 2x SATA 3.5″ drives
  • 2x USB 2.0 ports
  • Remote control
  • ≤15W power consumption + hard drive power
  • 380 x 268 x 45 mm (W x D x H)

H.265 Compression

The QVN3116P-2 supports up to 2 SATA storage drives up to 10TB capacity.  This which when combined with the newest H.265 compression codec ensures this unit is more than able to record and store the highest quality video feeds from 2 to 8MP cameras.  Backup can be added to the standard USB 2.0 port or video feeds can be reflected back out to another NVR or Q-See QT View server.

The H.265 new generation video codec requires half the storage of the older H.264 compression.



HDMI-4K 8MP Ultra High Definition Input and Output

The QVN3116P-2 NVR supports up to 112Mbps of video stream aggregate bandwidth for camera streams in full 25fps 8MP 3840×2160 resolution.  This input can be fully displayed on any UHD 4K display, TV or monitor.



Output is via 1 HDMI-4Kx2K port or a standard VGA port.  These can be used in a variety of ways to distribute the displays in various modes across multiple display devices.  HDMI extenders and splitters can be used.







Q-See’s QT View for IPHONE, IPAD and ANDROID SMARTPHONES puts the power of peace-of-mind literally at your fingertips.  Designed to work with our QT-series security DVR and NVRs, QT-View allows you to check in on your property, business or loved ones anywhere, at any time. Receive instant e-mail alerts and see what’s going on with the swipe of a finger.

View live feeds from up to four cameras simultaneously. QT View takes full advantage of touch-screen technology to allow you to add or change video feeds, play back video or even control a pan-tilt-zoom camera . You can even take still images and save them on your phone or send them as e-mail attachments.

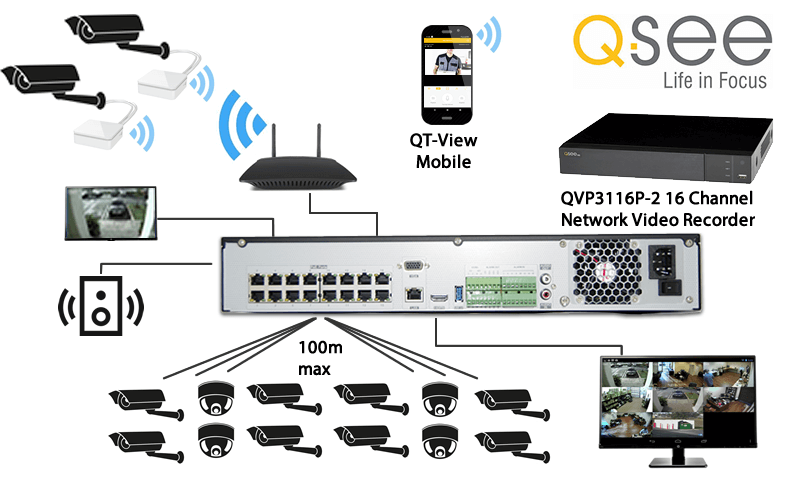

16 Direct Connect PoE Ports

QVP3116P-2 NVRs include built in support for direct plug and play connection to Q-See IP Cameras of all types.  Just plug in each camera with a single Ethernet cable, turn on the power, connect a display monitor or your mobile and view.

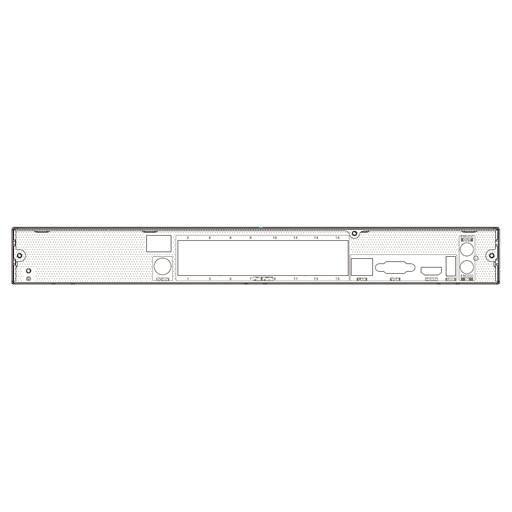

* Rear of NVR may differ



Smart Video Analytics

The QVP3116P-2 NVRs all support the new range of Video Analytic Cameras from Q-See such as the QTN8086B.

Video Analytics Scene Change
Detect if the stable part of a scene permanently changes with adjustable time sensitivities
Video Analytics Blurr Detection
Alert on camera blurr detection through fogging, deliberate smearing or otherwise.
Video analytics Intrusion Detection
Alert on motion within a multipoint area to detect movement through a window or an area that is out of bounds etc.
Video Analytics Line Crossing
Provides alerts when objects (usually people) cross a line in either one direction, the other or both.
Video Analytics Object Detection
Detect when an object has been added or removed from a scene. Great for lost item recovery.
Video Analytics Region Enter / Exit
Area intrusion detection function for alerts when part of a specific scene region is used as an entry or exit point. Ideal for FireDoor alerts etc.
Video Analytics Tamper Detection
Detect if a camera is tampered through changed field of view, with masking, blocking, physical damage etc



Specifications

Model

QVP3116P-2

System OS Embedded Linux
Video Network Input 16 CH IPC input
Network Input Resolution 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280×1024 / 960P / 720P / 960H / D1 / CIF
Output 1xHDMI-4K: 3840 × 2160 / 1920 × 1080 / 1280 × 1024/ 1024 × 768 | 1xVGA: 1920 × 1080 / 1280 × 1024/ 1024 × 768
Compression Standard H.265 / H.264
Audio Network Input 16 CH IPC audio input
2-way Audio RCA × 1
Local Output RCA × 1
Compression G.711(U/A)
Record Record Stream Dual stream recording
Resolution 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280×1024 / 960P / 720P / 960H / D1 / CIF
Frame Rate NTSC:30fps / PAL:25fps
Playback Simultaneous Playback Max. 16 CH
Search Time slice / time / event / tag search
Smart Search Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
Function Play / Pause / FF / FB / DigitalZoom
Decoding Capability Live View / Playback 1CH 8MP / 4CH 1080P
Alarm Mode Manual / sensor / motion / exception / smart events
Input Supports IPC alarm input
Output Supports IPC alarm output
Triggering Record / snap / preset / e-mail / etc.
Network Interface RJ 45 1000Mbps × 1
Protocol TCP / IP / PPPoE / DHCP / DNS / DDNS / UPnP / NTP / SMTP / HTTP / HTTPs / 802.1x
Incoming Bandwidth 112Mbps
Outgoing Bandwidth 112Mbps
Mobile Device OS iOS / Andriod
Storage HDD Interface SATA3.0 × 2 / max 8T per HDD
Backup Local Backup U disk / USB mobile HDD
Network Backup Yes
Port USB USB 2.0 × 2
Remote Controller Optional
PoE PoE Ports RJ 45 100 Mbps × 16
Standards IEEE802.3af
Output Power ≤ 150W
Others Power Supply DC 48V/3.75A
Consumption ≤ 15W ( without HDD )
Dimensions (mm) 380 × 268 × 45 ( W × D × H )
Working Environment -10 ~ 50 ℃ / 10% ~ 90% humidity
