8MP QVP85DELA AI Perimeter Protection Dome


Q-See QVP85DELA AI Face Det/Cap/Count/Perim Dome : 1/2.8″ 8MP CMOS sensor : 3840×2160 : 20fps : 2.8-12mm MotorLens 96°-32° : 120dBWDR/BLC/HLC/DeFog/3DDNR : Smart H.265/265+ : 1Ch built-in Mic & Audio in : 128GB Micro-SD : 30-50M IR : IP67 : Smart Analytics

The most advanced Q-See AI Deep Learning 8MP 4K Commercial Camera.

SKU: QVP85DELA Categories: , ,

Q-See QVP85DELA AI Face Det/Cap/Count/Perim Dome : 1/2.8″ 8MP CMOS sensor : 3840×2160 : 20fps : 2.8-12mm MotorLens 96°-32° : 120dBWDR/BLC/HLC/DeFog/3DDNR : Smart H.265/265+ : 1Ch built-in Mic & Audio in : 128GB Micro-SD : 30-50M IR : IP67 : Smart Analytics




Q-See 8MP 4K Ultra High Resolution cameras afford the highest possible clarity, offer the most detail and motorized zoom for viewing angle control. the Q-See QVP85DELA takes these features and adds a Deep Learning Artificial Intelligence engine for the most advanced, feature rich video analytics possible.  This AI dome camera has the following primary features:

  • 8MP 3840×2160 @ 20fps Triple Stream with Smart H.265 coding
  • Motorised Zoom Lens 1x to 4.3x optical magnification with 16x digital zoom
  • Up to 50m IR night vision
  • Image++ features:  3D DNR, true WDR, HLC, BLC and ROI coding
  • AI and IVA features:
    • Object abandoned/missing detection
    • region entrance/exiting/intrusion detection with human/vehicle classification
    • line cross detection with human/ vehicle classification
    • video tampering detection
    • scene change detection
    • face detection, face capture ~ forward captured image to a Q-See AI-NVR for full Facial Recognition alarms and alerts database matching
    • crowd density detection and heat mapping
    • human/vehicle counting
    • human tracking


Artificial Intelligence

The Q-See QVP85DELA is a Face and Vehicle Detection, Capture and Recognition camera with Artificial Intelligence shared between the camera and a Q-See AI-NVR for the recognition database storage functions with advanced Intelligent Video Analytics for perimeter area control.  Deep Learning algorithms for human and vehicle tracking distinguish between animals, moving plants and other false positive alarm triggers to allow for confident alarms and other triggers on a property border.  These features can be used to count people and vehicles for crowd density tracking and other advanced functions such as heat mapping and management reporting.  Match with a Q-See AI-NVR for AI data storage and other AI cameras such as ANPR cameras for license plate capture for a complete perimeter area security solution.

Face Recognition Modes

The Q-See QVP85DELA supports Face Detection, Capture and Recognition with a Q-See AI-NVR.

  • Face Detection – this is the ability by the camera to detect if a human face has entered a scene.  This can be used to trigger alerts and alarm states.  Typically on detection of a face the video is recorded permanently on the onboard SD memory module in the camera and an AI Network Video Recorder.  Motion detection by non face movement (animals, plants etc) is therefore not recorded.  A much more accurate alert system can be built into the security infrastructure in this way
  • Face Capture – this is the ability of the camera to record snapshot images of every face that passes through a video scene.  These can be reviewed at a later date by an operator to identify time stamps where incidents of interest may have occurred so that video can be replayed.  This saves time manually reviewing video footage looking for people with Q-See “Smart Search” on all Q-See AI-NVRs
  • Face Recognition – this is the ability of the system when operating with a Q-See AI-NVR to store a database of face images and match the faces to various lists.  Different lists can have different actions associated.  This capability is usually built into a advanced AI NVRs from Q-See.



Facial Detection for alerts, statistics and marketing
Recognise individuals for statistical analysis, database storage, deep search, list matching, marketing and alerts
Match recognition data to different lists with high accuracy then take action. Set off alarms, receive shapshots, open doors etc
Match faces, report, receive alerts and take actions in real time. No processing delay
Receive alerts for banned customers or gold class customers or anything in between
Simple management of AI-NVR database records. Import, export and update with NVR GUI, Mac, PC or mobile
Maintain detailed information against each facial analytics record for search, statistics and marketing
Advanced A.I "Smart Search" features allow you to rapidly scan for faces across multiple camera recordings and time windows
Face tracking across multiple AI-NVRs in remote locations from multiple camera records and time frames
Statistics engine allows for analysis and investigation of activity levels and detailed reports for marketing teams
Responsive marketing can react to the capture category of a face in real time
Full management features with the QTView app. Perform all functions from your mobile
Search for any record field across all recordings from your NVR, Mobile or PC
Search for an uncategorised face by image across all recordings from your NVR, Mobile or PC
Playback face search matches anytime, anywhere with your mobile


Intelligent Video Analytics

Video Analytics Scene Change
Detect if the stable part of a scene permanently changes with adjustable time sensitivities
Video Analytics Blurr Detection
Alert on camera blur detection through fogging, deliberate smearing or otherwise.
Video analytics Intrusion Detection
Alert on motion within a multipoint area to detect movement through a window or an area that is out of bounds etc.
Video Analytics Line Crossing
Provides alerts when objects (usually people) cross a line in either one direction, the other or both.
Video Analytics Object Detection
Detect when an object has been added or removed from a scene. Great for lost item recovery.
Video Analytics Region Enter / Exit
Area intrusion detection function for alerts when part of a specific scene region is used as an entry or exit point. Ideal for FireDoor alerts etc.
Video Analytics Tamper Detection
Detect if a camera is tampered through changed field of view, with masking, blocking, physical damage etc



Image Technology

















Advanced compression

One concern with high resolution cameras is their increased network bandwidth and storage requirements. 4K is essentially 400% more dots than standard 1080P High Definition cameras. Therefore bandwidth, processing and storage requirements are likewise 400% larger. To combat this problem the QVP51BS and 54DS cameras support the high compression H.265 CODEC. This reduces bandwidth and storage needs by 50% when compared to H.264.




Image Improvement




Smart apps and software










Match with the next generation Network Video Recorders with built in PoE ports for advanced video smart analysis, remote alerts, storage and plug and play setup.








Image Sensor 1 / 2.8 “CMOS
Image Size 3840×2160
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Iris Type DC Iris
Min. Illumination 0.01 lux @ F1.2,AGC ON; 0 lux with IR
0.015 lux @ F1.4, AGC ON; 0 lux with IR
Lens 2.8~12mm@F1.4, motorized
Field of View Horizontal: 96°~32°; Vertical:64°~18.4°; Diagonal: 103.8°~36.5°
Lens Mount Φ14
Wide Dynamic Range 120dB
Defog Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°


Video Compression Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
H.264 Compression Standard Baseline Profile/Main Profile/High Profile
Resolution 8MP ( 3840 × 2160 ), 6MP( 3072 × 2048 ),5MP( 2592 × 1944),
4MP( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ),
1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240
Main Stream 60Hz : 8MP/6MP(1~20fps), 5MP/4MP/2K/3MP/1080P/720P(1~30fps)
50Hz : 8MP/6MP(1~20fps), 5MP/4MP/2K/3MP/1080P/720P(1~25fps)
HFR Mode: 1080P/720P(60Hz: 1~60fps; 50Hz: 1~50fps)
Sub Stream 720P/D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps)
Third Stream D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps)
Bit Rate 64 Kbps ~ 12 Mbps
Bit Rate Type VBR / CBR
Audio Compression G711A / U
Image Settings ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
ROI Each ROI to be configured separately


Network RJ45
Video Output No
Audio 1CH audio input ; 1CH built-in MIC
Storage Built-in micro SD card slot; up to 128GB
Reset Yes


Remote Monitoring Web browsing, CMS remote control
Online Connection Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPs, QoS
Interface Protocol ONVIF
Storage Network remote storage; micro SD card storage
Smart Alarm Motion detection; SD card error; SD card full
Intelligent Analytics Object abandoned/missing detection, region entrance/exiting/intrusion detection(human/vehicle classification),
line crossing detection(human/ vehicle classification), video tampering detection, scene change detection,
face detection, face capture, crowd density detection, heat map, human/vehicle counting, human tracking
General function Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction, etc.
IR Distance 30~50m
Protection Grade IP 67
PoE Yes (IEEE802.3af)


Power Supply DC12V/PoE
Power Consumption < 9.5W
Operating Environment – 30 °C ~ 60 °C (-22°F~140°F)
Humidity: less than 95 % (non-condensing)

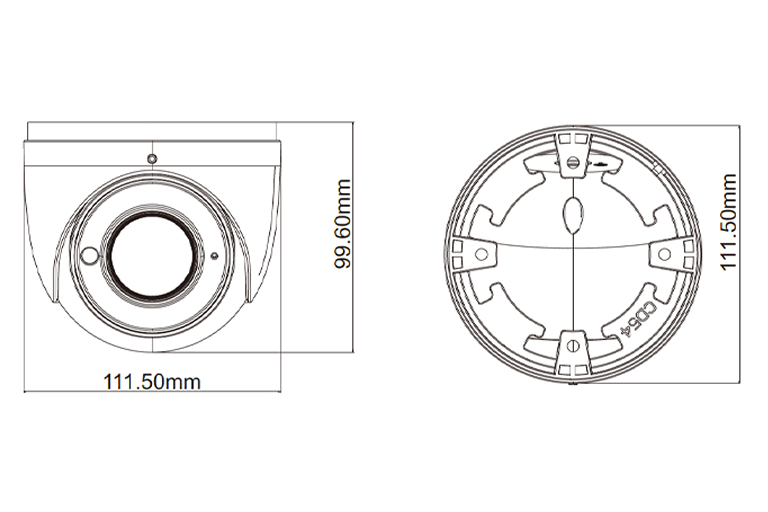

Dimensions ( mm ) Φ 111.5 × 99.6
Weight ( net ) Approx. 0.67KG
Installation Ceiling mounting; Wall mounting
