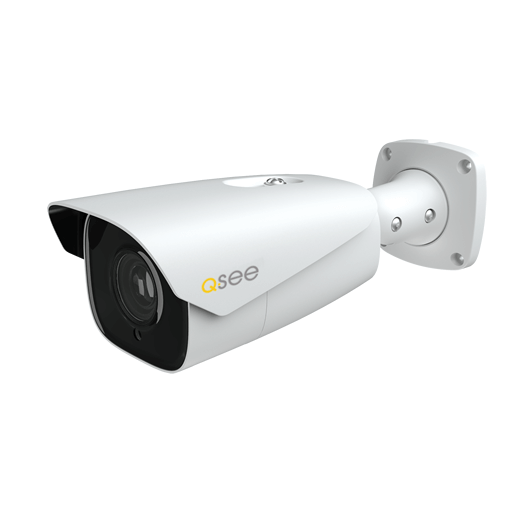

Q-See QVP83BELA AI Face Det/Cap/Count/Perim Bullet : 1/2.8″ 8MP CMOS sensor : 3840×2160 : 20fps : 2.8-12mm MotorLens 96°-32° : 120dBWDR/BLC/HLC/DeFog/3DDNR : Smart H.265/265+ : 1Ch built-in Mic & Audio in : 128GB Micro-SD : 30-50M IR : IP67 : Smart Analytics
Q-See 8MP 4K Ultra High Resolution cameras afford the highest possible clarity, offer the most detail and motorised zoom for viewing angle control. the Q-See QVP83BELA takes these features and adds a Deep Learning Artificial Intelligence engine for the most advanced, feature rich video analytics possible. This AI dome camera has the following primary features:
- 8MP 3840×2160 @ 20fps Tripple Stream with Smart H.265 coding
- Motorised Zoom Lens 1x to 4.3x optical magnification with 16x digital zoom
- Up to 50m IR night vision
- Image++ features: 3D DNR, true WDR, HLC, BLC and ROI coding
- AI and IVA features:
- Object abandoned/missing detection
- region entrance/exiting/intrusion detection with human/vehicle classification
- line cross detection with human/ vehicle classification
- video tampering detection
- scene change detection
- face detection, face capture ~ forward captured image to a Q-See AI-NVR for full Facial Recognition alarms and alerts database matching
- crowd density detection and heat mapping
- human/vehicle counting
- human tracking
Artificial Intelligence
The Q-See QVP83BELA is a Face and Vehicle Detection, Capture and Recognition camera with Artificial Intelligence shared between the camera and a Q-See AI-NVR for the recognition database storage functions with advanced Intelligent Video Analytics for perimeter area control. Deep Learning algorithms for human and vehicle tracking distinguish between animals, moving plants and other false positive alarm triggers to allow for confident alarms and other triggers on a property border. These features can be used to count people and vehicles for crowd density tracking and other advanced functions such as heat mapping and management reporting. Match with a Q-See AI-NVR for AI data storage and other AI cameras such as ANPR cameras for license plate capture for a complete perimeter area security solution.
Face Recognition Modes
The Q-See QVP83BELA supports Face Detection, Capture and Recognition with a Q-See AI-NVR.
- Face Detection – this is the ability by the camera to detect if a human face has entered a scene. This can be used to trigger alerts and alarm states. Typically on detection of a face the video is recorded permanently on the onboard SD memory module in the camera and an AI Network Video Recorder. Motion detection by non face movement (animals, plants etc) is therefore not recorded. A much more accurate alert system can be built into the security infrastructure in this way
- Face Capture – this is the ability of the camera to record snapshot images of every face that passes through a video scene. These can be reviewed at a later date by an operator to identify time stamps where incidents of interest have occurred so that video can be replayed. This saves time manually reviewing video footage looking for people with Q-See “Smart Search” on all Q-See AI-NVRs
- Face Recognition – this is the ability of the system when operating with a Q-See AI-NVR to store a database of face images and match the faces to various lists. Different lists can have different actions associated. This capability is usually built into a advanced AI NVRs from Q-See.
Intelligent Video Analytics
Image Technology
Advanced compression
One concern with the very resolution cameras is their increased network bandwidth and storage requirements. 4K is essentially 400% more dots than standard 1080P High Definition cameras. Therefore bandwidth, processing and storage requirements are likewise 400% larger. To combat this problem the QVP51BS and 54DS cameras support the high compression H.265 CODEC. This reduces bandwidth and storage needs by 50% when compared to H.264.
Image Improvement
Smart apps and software
Match with the next generation Network Video Recorders with built in PoE ports for advanced video smart analysis, remote alerts, storage and plug and play setup.
Specifications
Model |
QVP83BELA |
Camera |
|
Image Sensor | 1 / 2.8 “CMOS |
Image Size | 3840×2160 |
Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
Iris Type | DC Iris |
Min. Illumination | 0.01 lux @ F1.2,AGC ON; 0 lux with IR |
0.015 lux @ F1.4, AGC ON; 0 lux with IR | |
Lens | 2.8~12mm@F1.4, motorized |
Field of View | Horizontal: 96°~32°; Vertical:64°~18.4°; Diagonal: 103.8°~36.5° |
Lens Mount | Φ14 |
Wide Dynamic Range | 120dB |
BLC | Yes |
HLC | Yes |
Defog | Yes |
Digital NR | 3D DNR |
Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
Image |
|
Video Compression | Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
Resolution | 8MP ( 3840 × 2160 ), 6MP( 3072 × 2048 ),5MP( 2592 × 1944), |
4MP( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), | |
1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 | |
Main Stream | 60Hz : 8MP/6MP(1~20fps), 5MP/4MP/2K/3MP/1080P/720P(1~30fps) |
50Hz : 8MP/6MP(1~20fps), 5MP/4MP/2K/3MP/1080P/720P(1~25fps) | |
HFR Mode: 1080P/720P(60Hz: 1~60fps; 50Hz: 1~50fps) | |
Sub Stream | 720P/D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps) |
Third Stream | D1/CIF/480 × 240 (60Hz: 1~30fps; 50Hz: 1~25fps) |
Bit Rate | 64 Kbps ~ 12 Mbps |
Bit Rate Type | VBR / CBR |
Audio Compression | G711A / U |
Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
ROI | Each ROI to be configured separately |
Interfaces |
|
Network | RJ45 |
Video Output | CVBS output (BNC×1) |
Audio | 1CH audio input; 1CH audio output |
Alarm | 1CH alarm input; 1CH alarm output |
Storage | Built-in micro SD card slot; up to 128GB |
Reset | Yes |
Functions |
|
Remote Monitoring | Web browsing, CMS remote control |
Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPs, QoS |
Interface Protocol | ONVIF |
Storage | Network remote storage; micro SD card storage |
Smart Alarm | Motion detection; sensor alarm, SD card error; SD card full, IP address conflict, cable disconnection |
Intelligent Analytics | Object abandoned/missing detection, region entrance/exiting/intrusion detection(human/vehicle classification), |
line crossing detection(human/ vehicle classification), video tampering detection, scene change detection, | |
face detection, face capture, crowd density detection, heat map, human/vehicle counting, human tracking | |
General function | Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction, etc. |
IR Distance | 50~70m |
Protection Grade | IP 67 |
PoE | Yes (IEEE802.3af) |
Others |
|
Power Supply | DC12V/PoE |
Power Consumption | < 12W |
Operating Environment | – 30 °C ~ 60 °C (-22°F~140°F) |
Humidity: less than 95 % (non-condensing) | |

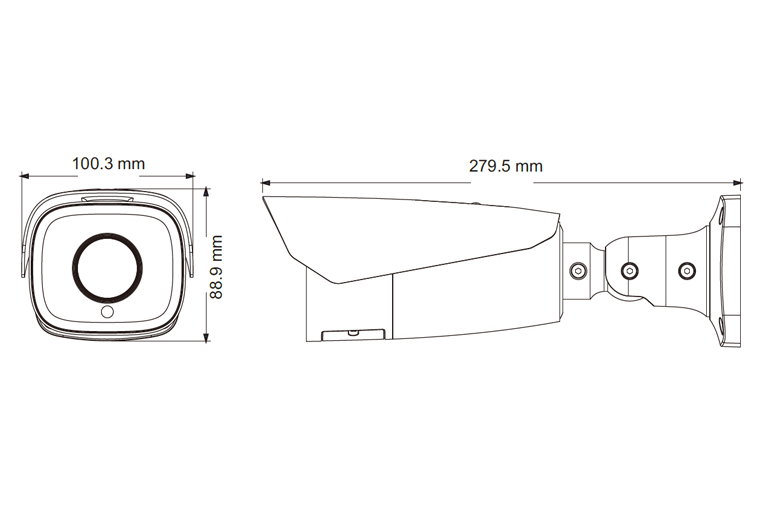

Dimensions ( mm ) | 279.5 × 100.3 × 88.9 |
Weight ( net ) | Approx. 1.04KG |
Installation | Ceiling mounting; Wall mounting |
