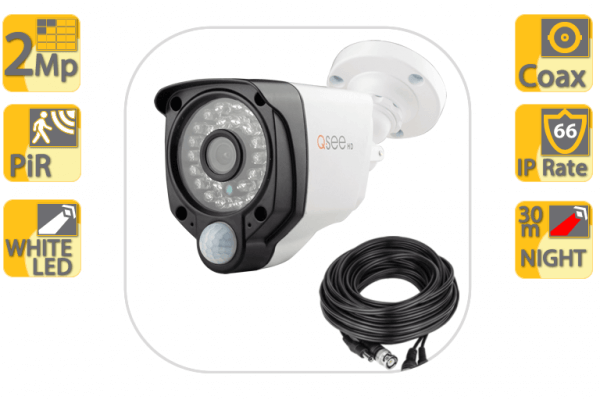

QH8222B-AU DIY Kit add-on camera

Q-See QH8222B-AU : 2MP : 18pcs White LED : 12pcs array IR : PIR : Retail box kit add-on : Compatible with QTH94 and QTH98 DVR : 1920×1080 : 30 Meter night vision : 8-10 Meter PIR range : 12V DC

SKU: QTN8098B-AU-1 Categories: , ,

Description

Q-See QH8222B-AU : 2MP : 18pcs White LED : 12pcs array IR : PIR : Retail box kit add-on : Compatible with QTH94 and QTH98 DVR : 1920×1080 : 30 Meter night vision : 8-10 Meter PIR range : 12V DC

Available online from:

https://www.mitre10.com.au/q-see-bullet-camera-with-security-light
https://www.target.com.au/p/q-see-camera-pir-2mp-bullet/61743007
https://www.homehardware.com.au/qsee-bullet-camera-with-security-light/

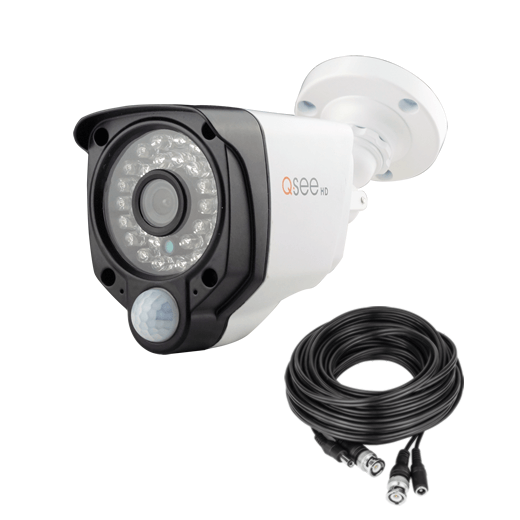

Expand your QTH94-xxx-1-AU or QTH98-xxx-1-AU DIY home CCTV kits with these advanced Analog Hig Definition (AHD) PIR Coaxial cable bullet cameras from Q-See Australia.  Each QH8222B-AU comes bundles with the camera and an 18m cable for power and video signal.



Power supplies for the QH8222B-AU cameras are included in the DIY DVR/Camera combo kits.  If you require separate power bricks please contact Q-See Australia for advise.

Specifications

Model

QH8222B-AU

System PAL/NTSC
Solution 1/3″ SC2135
Effective Pixels 1920(H)*1080(V)
Video output 1.0Vp-p  75II Composite BNCx1
Horizontal resolution 1080P
S/N Ratio >52dB (AGC OFF/BW OFF)
illumination 0.001 Lux
Minimum illumination 0.000 Lux(IR ON)
White Balance Auto
Gamma Ratio >=0.45
Color of camera housing Black+white
Infrared 18PCS White Light+12PCS IR ArrayLED
IR Distance 30Meter IR Distance
PIR Distance 8-10Meter
White light Mode keep turn on or flash on optional
Waterproof IP66
Lens Mount 3.6mm lens
Operating Temperature Outdoor: -10C to 50C
Humidity 0 to 95% RH (non-condensing)
Sync system 2:1 interlace internal Sync.turn on or flash on optional
Power supply 12V DC
