Q-See QT35128-16A2 AI-NVR : 10000 Facial Records @ 2160 pic/min : 128 Channel : 12MP 4000×3000 : 640Mbps : 10/100/1000 : 16CH Playback : 16x SATA : H.265 : 1x HDMI-4K-Out : 3x HDMI-1K-Out : VGA-Out : 2x USB2.0 : 1x USB 3.0 : 1.5RU : 24x Alarm-In : 8x Alarm-Out : 4U : Face Detection : Face Recognition : Perimeter People/Car/Bike : People Counting : People Density : Deep Learning

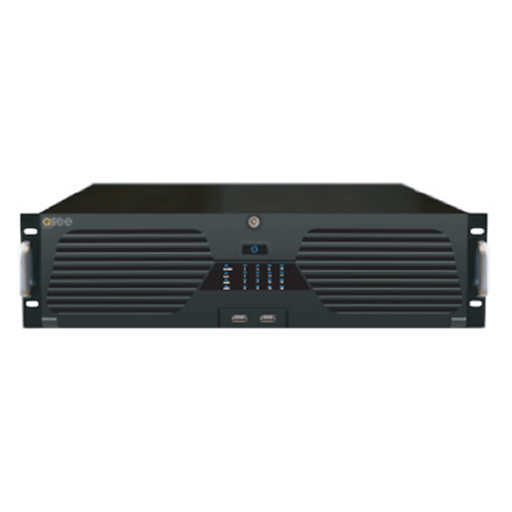

This is the newest generation enterprise grade Artificial Intelligence, Facial Recognition Network Video Recorder from Q-See International. It is feature packed with the latest technology for Video Surveillance perfectly suited for commercial use with 128 channels at 12MP support and a 10000 record, 2160 pictures/min processing capacity facial recognition engine.
Match with Q-See Intelligent Video Analytics, Face Detection, Facial Recognition and Perimeter Alert cameras for the most advanced video surveillance solution possible today.
With support for up to 128 12 Megapixel 4K cameras the Q-See QT35128-16A2 is the ideal AI-NVR for deployment into large 65+ camera locations. As part of the Q-See range this recorder can be controlled by a central Camera Management Server (CMS) for robust, reliable remote video monitoring and be networked to other NVRs and storage systems with ease.
Add Q-See QAPE high power over Ethernet switches for distributed camera deployments. Please see here: https://www.q-see.com.au/product-category/accessories/
- 128 Channel 12MP Resolution at 4000×3000 pixels per camera
- Support for 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 2MP / 1.3MP / 1MP / 960P / 960H / D1 / CIF
- Support for Intelligent Video Analytics cameras events – object abandoned/missing, region intrusion, tripwire & video tamper
- Support for Facial Recognition and AI with 10000 facial database / remote site sync / 2160 pic per min compute capacity / statistics, search & list alarm alert / 32 libraries
- 128 Channels of AI FR or FD cameras (AI by camera)
- 4 Channels of AI by standard IP camera (AI by QT35128-16A2)
- 16x RJ45 PoE ports for direct camera connection via Cat5e or Cat6 Ethernet cabling
- Support for both H.264 and the latest H.265 compression CODECs for high quality video at maximum compression
- ONVIF 2.3 conformance
- 4K output for true ultra high def viewing. HDMI-4K x1 (4Kx2K, 1920×1080 & 1280×1024), HDMI-1K x3 (1920×1080 & 1024×768) & VGA x1 (1920×1080 & 1280×1024)
- 16 channel simultaneous playback
- 640Mbps total network access bandwidth processing capacity. 128Mbps Display priority bandwidth
- 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P @ 25 and 30fps
- Dual stream recording with manual, timer, motion and sensor based triggering
- Dual stream recording technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- 24 channel local alarm input and 8 channel output
- 2x 10/100/1000 RJ45 Ethernet LAN port
- TCP/IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x support
- Up to 16x SATA 3.5″ drives, RAID0/1/5/6/10
- 2x USB 2.0 and 1x USB 3.0 port
- Remote control
- ATX 300W PSU
- ≤50W power consumption + hard drive power
- 437 x 483 x 143 mm (W x D x H)
Smart Video Analytics
Facial Recognition Ready with A.I.
The QT35128-16A2 supports connectivity with up to 128 AI Facial Detection and Recognition cameras and has the added benefit of supporting FR from standard IP cameras with its built in Artificial Intelligence facial recognition engine. Store up to 10,000 records and synchronize that data with nine other remote AI-NVRs. For larger deployments synchronize an unlimited number of records across any number of AI-NVRs with a QTView Video Surveillance server in a central data center.
H.265 Compression and Advanced Storage
The QT35128-16A2 support up to 16 SATA storage drives up to 10TB capacity which, when combined with the newest H.265 compression codec, ensures this unit is more than able to record and store the highest quality video feeds from 2MP HD to 12MP 4K cameras. Backup can be added to the standard USB 3.0 port, eSATA or remote NVRs, Windows PCs, MACs and Video Servers. Drives can operate as spooled storage pool devices grouped together with particular cameras to create different storage archive times for different camera types with or without RAID redundancy.
The H.265 new generation video codec requires half the storage of the older H.264 compression.
HDMI-4K 8MP Ultra High Definition Input and Output
The QT35128-16A2 NVR supports up to 640Mbps of video stream aggregate bandwidth for camera streams in full 25fps 12MP 4000×3000 resolution. This input can be fully displayed on any UHD 4K display, TV or monitor.
Output is via 1 HDMI-4Kx2K port, 3 HDMI-1K ports and a standard VGA port. These can be used in a variety of ways to distribute the displays in various modes across multiple display devices. HDMI extenders and splitters can be used.
Q-See’s QT View for IPHONE, IPAD and ANDROID SMARTPHONES puts the power of peace-of-mind literally at your fingertips. Designed to work with our QT-series security DVR and NVRs, QT-View allows you to check in on your property, business or loved ones anywhere, at any time. Receive instant e-mail alerts and see what’s going on with the swipe of a finger.
View live feeds from up to four cameras simultaneously. QT View takes full advantage of touch-screen technology to allow you to add or change video feeds, play back video or even control a pan-tilt-zoom camera . You can even take still images and save them on your phone or send them as e-mail attachments.
|Video||Network Input||128 CH IPC input|
|Outgoing Bandwidth||640Mbps out to network. 128Mbps out to displays.|
|Network Input Resolution||12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P /720P / 960H / D1 /CIF|
|Output||HDMI-4K × 1 : 3840×2160@60fps/3840×2160@30fps/ 1920×1080/1280×1024/1024×768|
|HDMI × 3 : 1920×1080/1280×1024/1024×768|
|VGA × 1 : 1920×1080/1280×1024/1024×768|
|Audio||Network Input||128 CH IPC audio input|
|2-way Audio||RCA × 1|
|Local Output||RCA × 1, HDMI|
|Record||Record Stream||Dual stream recording|
|Resolution||12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280 × 1024 / 960P /720P / 960H / D1 /CIF|
|Frame Rate||NTSC: 30fps; PAL:25fps|
|Mode||Manual, timer, motion, sensor, smart events|
|Playback||Simultaneous Playback||Max 16 CH|
|Search||Time slice / time / event / tag search|
|Smart Search||Highlighted color to display the camera record in a certain period of time, different colors refers to different record events|
|Function||Play, pause, FF, FB, digital zoom, etc.|
|Decoding Capability||Live View/ Playback||1CH @ 12 & 8MP / 4CH @ 5MP / 9CH @ 720P / 16CH @ 720P|
|Alarm||Mode||Manual, sensor, motion, exception, smart events|
|Input||24 CH local alarm input; supports IPC alarm input|
|Triggering||Record, snapshot, buzzer, preset, e-mail, mobile push|
|Face||AI by IP camera||128 Channel|
|AI by NVR||4 Channel|
|Face match performance||16 Channel|
|Face Picture Database||32 libraries|
|10000 face pictures & matching record|
|Face Match Capability||36 pictures / second (2160 per minute)|
|Face Picture Search||Search by picture is supported|
|Database Management||Add, modify, delete and search face pictures|
|Face Picture Adding||Add face pictures through APP, WEB and external import|
|External face picture enrollment||Resolution：128 x 128 ～ 1920 x 1080 Size：≤ 70KB : format jpg or jpeg|
|Face Picture Comparison||Supports common, allow list and block list alarm|
|Map of Face Track||Resolution：2560 x 1920 Size：≤ 512KB : format jpg or jpeg|
|Statistic Graph of Face Information||Bar graph|
|Statistic Mode of Face Information||Statistics by day, week, month, quarter as well as customized time period|
|Network||Interface||RJ45 10 / 100 / 1000 Mbps × 2|
|Protocol||TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x|
|Mobile Device||OS||iOS, Andriod|
|Storage||HDD Interface||SATA × 16 : hot swap|
|RAID||RAID0, RAID1, RAID5, RAID6, RAID10|
|Max Capacity per HDD||
10TB A.I. surveillance grade
|Backup||Local Backup||eSATA x2 : USB mobile HDD|
|Video stream replication||Synchronize/Restream to remote NVRs, Video Servers, Windows PC and MAC|
|Port||RS 485||Yes (full-duplex), connect to PTZ or keyboard|
|USB||USB 2.0 × 1 , USB 3.0 × 1|
|Power Supply||ATX 300W|
|Others||Consumption||≤ 50W ( without HDD )|
|Dimensions (mm)||437 × 483 × 143 ( W × D × H )|
|Working Environment||-15 ～ 50 ℃，10% ～ 90% humidity|
