32 Ch QT3332-8 NVR

$2,299.00

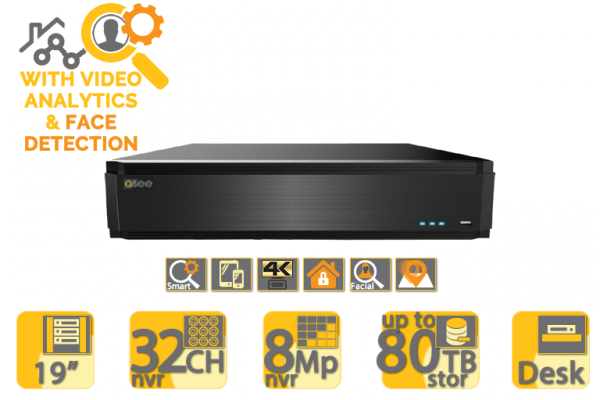

Q-See QT3332-8 NVR : 32 Channel : 8MP 3840×2160 : 256Mbps : 2x 10/100/1000 : 8x SATA : H.265 : 1x HDMI-4K-Out, 1x HDMI-Out : VGA-Out : Alarm 8x In 4x out : 2x eSATA : 2RU : Face Detection : Perimeter People/Car/Bike : People Counting : People Density : Deep Learning



This is the newest generation, largest capacity Network Video Recorder from Q-See.  It is feature packed with the latest technology for Video Surveillance perfectly suited for Australian commercial use.

SKU: QT3332-8 Category:

Q-See QT3332-8 NVR : 32 Channel : 8MP 3840×2160 : 256Mbps : 2x 10/100/1000 : 8x SATA : H.265 : 1x HDMI-4K-Out, 1x HDMI-Out : VGA-Out : Alarm 8x In 4x out : 2x eSATA : 2RU : Face Detection : Perimeter People/Car/Bike : People Counting : People Density : Deep Learning

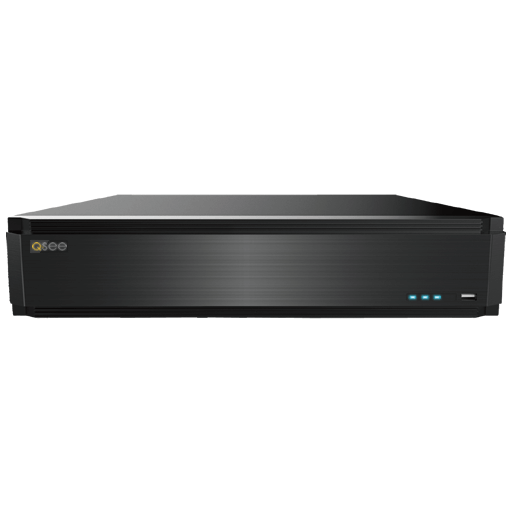

This is the newest generation commercial grade Network Video Recorder from Q-See.  It is feature packed with the latest technology for Video Surveillance perfectly suited for Australian business use with full support for Intelligent Video Analytics, Face Detection and Perimeter Alert cameras.





With support for up to 32x 8 Megapixel cameras the Q-See QT3332 is the ideal NVR for deployment into commercial and industrial locations with 16 to 32 camera requirements.  As part of the Q-See range this recorder can be controlled by a central Camera Management Server (CMS) for robust, reliable remote video management and monitoring.

Key Features:

Q-See QT3332-8

  • 32 Channel 8MP Resolution at 3840×2160 per camera
  • Support for both H.264 and the latest H.265 compression CODECs for high quality video at maximum compression
  • ONVIF 2.3 conformance

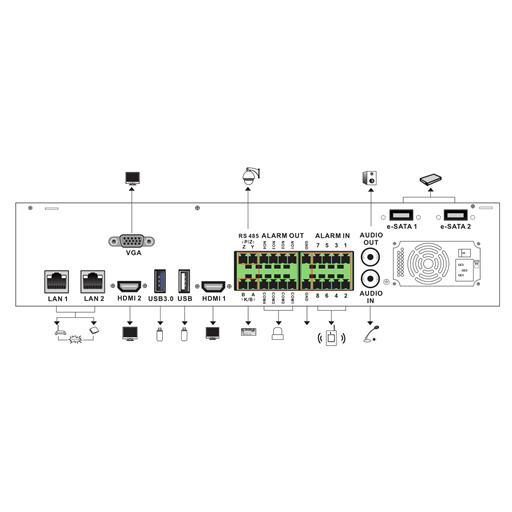

  • 4K output for true ultra high def viewing.  HDMI x2 (1x of 4Kx2K, 1x of 1920×1080 & 1280×1024) VGA x1 (1920×1080 & 1280×1024)
  • 16 channel simultaneous playback
  • 320Mbps total network access bandwidth processing capacity
  • 8MP/ 5MP / 4MP / 3MP / 1080P / 960P / 720P @ 25 and 30fps
  • Dual stream recording with manual, timer, motion and sensor based triggering
  • 8 channel local alarm input and 4 channel output
  • 2x 10/100/1000 RJ45 Ethernet LAN port in dual or redundant mode
  • TCP/IP, PPPoE, DHCP, DNS, DDNS, uPnP, NTP and SMTP support
  • Up to 8x SATA 3.5″ drives with RAID options
  • eSATAx2 expansion ports
  • 2x USB 2.0 and 1x USB 3.0 port
  • Remote control
  • ≤15W power consumption + hard drive power
  • 2RU
  • 445×436×90(W×D×H)

The QT3332-8 is designed for deployments of many cameras typically distributed over large areas.  As such camera power and Ethernet switching is typically provided by dedicated and distributed PoE access switches, PoE range extenders and PoE splitters.  Ethernet and IP design is an important consideration and a free consultation is recommended for the design, installation and configuration of switches.  Q-See access switches are available in 8, 16 and 24 ports to aggregate cameras and back haul to the QT3364-8.

H.265 Compression

The QT3332 support up to 8 SATA storage drives up to 10TB capacity which when combined with the newest H.265 compression codec ensures this unit is more than able to record and store the highest quality video feeds from 2 to 8MP cameras.  Storage can be set into capture pools with or without drives set in hardware RAID arrays.  Backup can be added via optional eSATA drives and eSATA drive arrays in addition to the standard USB 3.0 port to external portable hard drives.

The H.265 new generation video codec requires half the storage of the older H.264 compression .



HDMI-4K 8MP Ultra High Definition Input and Output

The QT3332 NVR supports up to 320Mbps of video stream aggregate bandwidth for camera streams in full 25fps 8MP 3840×2160 resolution.  Video streams can be reflected back out to the network on to other NVRs, Video Surveillance Servers, management PCs and display screens and walls.



Output is via 1 HDMI-4Kx2K port, 1 HDMI-1K port and a standard VGA port.  These can be used in a variety of ways to distribute the displays in various modes across multiple display devices.  HDMI extenders and splitters can be used.







Q-See’s QT View for IPHONE, IPAD and ANDROID SMARTPHONES puts the power of peace-of-mind literally at your fingertips.  Designed to work with our QT-series security DVR and NVRs, QT-View allows you to check in on your property, business or loved ones anywhere, at any time. Receive instant e-mail alerts and see what’s going on with the swipe of a finger.

View live feeds from up to four cameras simultaneously. QT View takes full advantage of touch-screen technology to allow you to add or change video feeds, play back video or even control a pan-tilt-zoom camera . You can even take still images and save them on your phone or send them as e-mail attachments.

Smart Video Analytics

The QT878/3332x-x/3364x-x/35128-16A2 all support the new range of Video Analytic Cameras from Q-See such as the QNT8053D and QTN8098B.

Video Analytics Scene Change
Detect if the stable part of a scene permanently changes with adjustable time sensitivities
Video Analytics Blurr Detection
Alert on camera blur detection through fogging, deliberate smearing or otherwise.
Video analytics Intrusion Detection
Alert on motion within a multipoint area to detect movement through a window or an area that is out of bounds etc.
Video Analytics Line Crossing
Provides alerts when objects (usually people) cross a line in either one direction, the other or both.
Video Analytics Object Detection
Detect when an object has been added or removed from a scene. Great for lost item recovery.
Video Analytics Region Enter / Exit
Area intrusion detection function for alerts when part of a specific scene region is used as an entry or exit point. Ideal for FireDoor alerts etc.
Video Analytics Tamper Detection
Detect if a camera is tampered through changed field of view, with masking, blocking, physical damage etc



Specifications

Model
QT3332-8
QT3364-8
System Compression
Standard H.265 and H.264
Standard H.265 and H.264
Main Processing Chip
ARM Cortex A17
ARM Cortex A17
OS
Embedded Linux
Embedded Linux
Video Network Access Bandwidth
256Mbps incoming, 256Mbps outgoing
320Mbps incoming, 320Mbps outgoing
Input Resolution 8MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, 960H, D1, CIF real time 8MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, 960H, D1, CIF real time
Network Access
32 CH IPC input
64 CH IPC input
Output HDMI 1 : 3840×2160@60fps down to 1024×768
HDMI 2 : 1920×1080/1280×1024
VGA×1:1920×1080/1280×1024
HDMI 1 : 3840×2160@60fps down to 1024×768
HDMI 2 : 1920×1080/1280×1024
VGA×1:1920×1080/1280×1024
Audio Input
32 CH IPC audio input with G.711(U/A) compression
64 CH IPC audio input with G.711(U/A) compression
2-way Audio
RCA×1
RCA×1
Local Output
RCA×1
RCA×1
Record Resolution
8MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, 960H, D1, CIF real time
8MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, 960H, D1, CIF real time
Frame Rate
PAL @ 25fps & NTSC @ 30fps
PAL @ 25fps & NTSC @ 30fps
Bit Stream
32Kbps-12Mbps
32Kbps-12Mbps
Image Quality
5 Level
5 Level
Recording Stream
Dual stream recording
Dual stream recording
Record on mode
Manual, timer, motion, sensor, smart events
Manual, timer, motion, sensor, smart events
Playback Simultaneous Playback
Max 16 CH
Max 16 CH
Live View / Decoding
1CH 8MP / 4 CH 5MP / 9 CH 720P/ 16CH 720P
1CH 8MP / 4 CH 5MP / 9 CH 720P/ 16CH 720P
Search
Time slice / time / event / tag search
Time slice / time / event / tag search
Smart Search
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
Highlighted color to display the camera record in a certain period of time, different colors refers to different record events
Functions
Play, Pause, Fast Play Forward, Fast Play Rewind, Digital Zoom
Play, Pause, Fast Play Forward, Fast Play Rewind, Digital Zoom
Alarm Mode Manual, sensor, motion, exception, smart events Manual, sensor, motion, exception, smart events
Input 8 CH local alarm input; supports IPC alarm input 8 CH local alarm input; supports IPC alarm input
Output 4 CH 4 CH
Triggering Record, snapshot, buzzer, preset, e-mail, mobile push Record, snapshot, buzzer, preset, e-mail, mobile push
Network Interface
RJ45 10/100/1000 Mbps × 2
RJ45 10/100/1000 Mbps × 2
Network Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x
Storage HDD
SATA×8, eSATA×2
SATA×8, eSATA×2
Array
RAID0, RAID1, RAID5, RAID6, RAID10
RAID0, RAID1, RAID5, RAID6, RAID10
Max Capacity per HDD
10TB A.I. surveillance grade
10TB A.I. surveillance grade
Backup USB Backup
Yes
Yes
eSata Backup
Yes
Yes
Network Backup
Yes
Yes
Interface Alarm In
8
8
Alarm Output
4
4
Communication
RS485 full duplex for PTZ and keyboard
RS485 full duplex for PTZ and keyboard
Remote
Yes
Yes
USB USB2.0×2( one in the front panel and the other in the rear panel ), USB 3.0×1( rear panel ) USB2.0×2( one in the front panel and the other in the rear panel ), USB3.0×1( rear panel )
Others Case
2U
2U
Dimensions(mm )
445×436×90(W×D×H)
445×436×90(W×D×H)
Power Supply
ATX 250W
ATX 250W
Consumption
≤ 15W ( without HDD )
≤ 15W ( without HDD )
Work Environment
-10 ~ 50 ℃,10% ~ 90% humidity
-10 ~ 50 ℃,10% ~ 90% humidity
