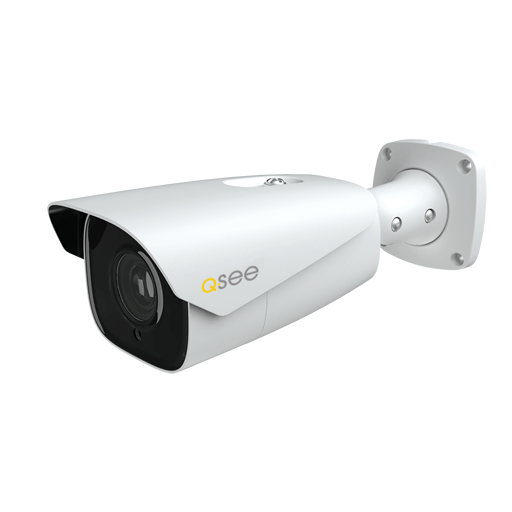

8MP QVP83BSA MotorZoom Bullet with Analytics

$579.00

Q-See QVP83BSA IP Bullet Camera : 1/2.7″ 8MP CMOS sensor : 3840×2160 : 20fps : 2.8-12mm Motorzoom 102.7°-32.9° : DWDR/HLC/BLC/DeFog/3DDNR : 50-70M Night Vision : H.265 : 1x Alarm-In&Out : 1Ch Audio in&out : 128GB Micro-SD : IP67 : Smart Analytics

Motorised Zoom Varifocal 8MP, 20fps, 4K Bullet camera with Intelligent Video Analytics.

SKU: QVP83BSA Categories: , ,

Q-See QVP83BSA IP Bullet Camera : 1/2.7″ 8MP CMOS sensor : 3840×2160 : 20fps : 2.8-12mm Motorzoom 102.7°-32.9° : DWDR/HLC/BLC/DeFog/3DDNR : 50-70M Night Vision : H.265 : 1x Alarm-In&Out : 1Ch Audio in&out : 128GB Micro-SD : IP67 : Smart Analytics

Q-See 8MP 4K Ultra High Resolution cameras afford the highest possible clarity, offer the most detail and motorised zoom for viewing angle control.  Don’t be misled with other 8MP cameras that have fields of view of 60° or less and frame rates of less than 12 frames a second.  Instead look a little deeper at the Q-See QVP8xxx range for cameras and compare the specifications.  You will see the Q-See QVP83BSA provides an option of the highest order with motorized zoom to ensure the scene you want to capture is the exact scene you do capture.



























Intelligent Video Analytics

Video Analytics Scene Change
Detect if the stable part of a scene permanently changes with adjustable time sensitivities
Video Analytics Blurr Detection
Alert on camera blur detection through fogging, deliberate smearing or otherwise.
Video analytics Intrusion Detection
Alert on motion within a multipoint area to detect movement through a window or an area that is out of bounds etc.
Video Analytics Line Crossing
Provides alerts when objects (usually people) cross a line in either one direction, the other or both.
Video Analytics Object Detection
Detect when an object has been added or removed from a scene. Great for lost item recovery.
Video Analytics Region Enter / Exit
Area intrusion detection function for alerts when part of a specific scene region is used as an entry or exit point. Ideal for FireDoor alerts etc.
Video Analytics Tamper Detection
Detect if a camera is tampered through changed field of view, with masking, blocking, physical damage etc















Advanced compression

One concern with the very resolution cameras is their increased network bandwidth and storage requirements. 4K is essentially 400% more dots than standard 1080P High Definition cameras. Therefore bandwidth, processing and storage requirements are likewise 400% larger. To combat this problem the QVP51BS and 54DS cameras support the high compression H.265 CODEC. This reduces bandwidth and storage needs by 50% when compared to H.264.







Advanced image improvement







Smart apps and software



















Match with the next generation Network Video Recorders with built in PoE ports for advanced video smart analysis, remote alerts, storage and plug and play setup.







Specifications

Model

QVP83BSA

Camera

Image Sensor 1 / 2.7 “CMOS
Image Size 3840 × 2160
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Iris Type Fixed Iris
Min. Illumination 0.11 lux @F1.4, AGC ON; 0 lux with IR
0.032 lux @ F1.2, AGC ON; 0 lux with IR
Lens 2.8~12mm@F1.4; Motorized zoom lens Horizontal field of view: 102.7°~32.2°
Lens Mount Φ14
Wide Dynamic Range Digital WDR
BLC Yes
HLC Yes
Defog Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360°


Video Compression H.265 / H.264
H.264 Compression Standard Baseline Profile/Main Profile/High Profile
Resolution 8MP ( 3840 × 2160 ), 6MP ( 3072× 2048 ), 5MP ( 2592 × 1944 ),720P ( 1280 × 720 ), D1, CIF, 480 × 240
Main Stream 8MP/ 6MP/ 5MP(1~20fps)
Sub Stream 720P/D1/CIF(1~20fps)
Third Stream D1/CIF/480×240(1~20fps)
Bit Rate 64 Kbps ~ 8 Mbps
Bit Rate Type VBR / CBR
Audio Compression G711A / U
Image Settings ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
ROI Each ROI to be configured separately

Interfaces

Network RJ45
Video Output No
Audio 1CH audio input; 1CH audio output
Alarm 1CH alarm input; 1CH alarm output
Storage Built-in micro SD card slot; up to 128GB
Hardware Reset Yes

Functions

Remote Monitoring Web browsing, CMS remote control
Online Connection Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS
Interface Protocol ONVIF
Storage Network remote storage, micro SD card storage
Smart Alarm Motion detection, Sensor alarm detection, SD card error, SD card full, IP address conflict, cable disconnection
Intelligent Analytics Region intrusion detection, scene change detection and line crossing detection
General Function Watermark, IP address filtering, video mask, heartbeat, illegal login lock
PoE Yes
IR Distance 50 ~ 70 m
Ingress Protection IP 67

Others

Power Supply DC12V/PoE
Power Consumption < 9.5W
Operating Environment -30 °C ~ 60 °C (-22°F~140°F);Humidity: less than 95 % (non-condensing)

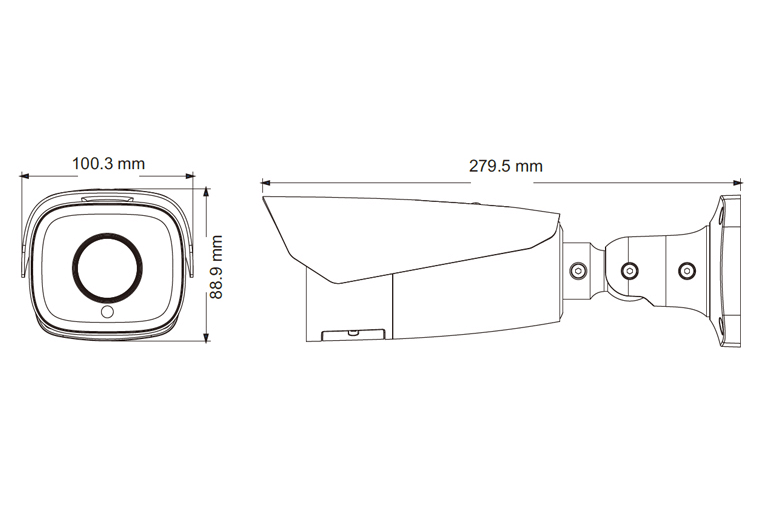

Dimensions ( mm ) 279.5 × 100.3 × 88.9
Weight ( net ) Approx. 1.032KG
Installation Ceiling mounting; Wall mounting
