2MP QTN8225DA3-FR AI Face Recognition MotorZoom dome

$779.00

QTN8225DA3-FR AI Face Det/Cap/Rec Dome : 10K records : 1/2.8″ 2MP CMOS sensor : 1980×1080 : Motorzoom 7-22mm : 120dB WDR : BLC : HLC : 3D DNR : Defog : Starlight : Smart H.265/265+ : 1Ch built-in Mic & Audio in : 128GB Micro-SD : IP67 : Smart Analytics : Face Detection : Face Capture : Face Recognition



SKU: QTN8225DA3-FR Category:

QTN8225DA3-FR AI Face Det/Cap/Rec Dome : 10K records : 1/2.8″ 2MP CMOS sensor : 1980×1080 : Motorzoom 7-22mm : 120dB WDR : BLC : HLC : 3D DNR : Defog : Starlight : Smart H.265/265+ : 1Ch built-in Mic & Audio in : 128GB Micro-SD : IP67 : Smart Analytics : Face Detection : Face Capture : Face Recognition









Artificial Intelligence – Face Recognition

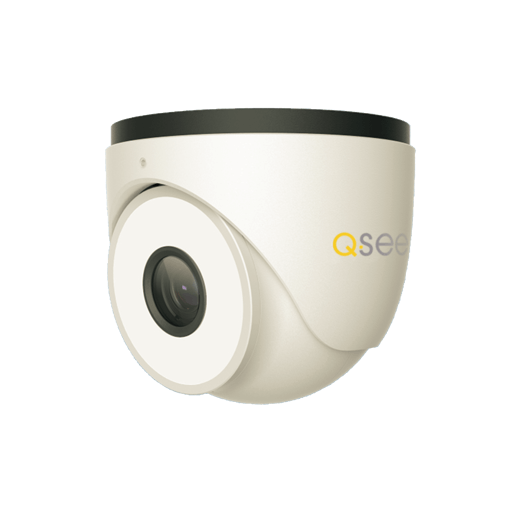

The Q-See QTN8225DA3-FR is an autonomous Face Recognition camera with Artificial Intelligence built in and its own server service for face detection, capture and recognition functions.  It is not necessary to have an “AI” capable NVR for face recognition functions as this camera can work stand-alone.  Match it with a non-AI NVR or a Face Detection capable NVR or a Face Recognition capable NVR.

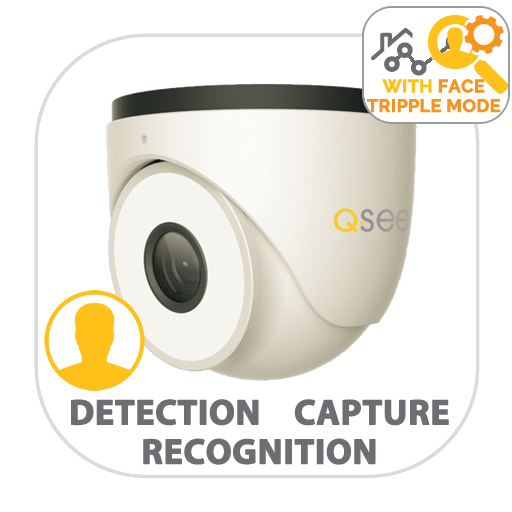

Face Recognition Triple Mode

The Q-See QTN8225DA3-FR supports in camera (stand alone) operation for Face Detection, Capture and Recognition without the need to have these functions on an NVR.

  • Face Detection – this is the ability by the camera to detect if a human face has entered a scene.  This can be used to trigger alerts and alarm states.  Typically on detection of a face the video is recorded permanently on the onboard SD memory module in the camera or on a Network Video Recorder.  Motion detection by non face movement (animals, plants etc) is therefore not recorded.  A much more accurate alert system can be built into the security infrastructure in this way
  • Face Capture – this is the ability of the camera to record snapshot images of every face that passes through a video scene.  These can be reviewed at a later date by an operator to identify time stamps where incidents of interest have occurred so that video can be replayed.  This saves time manually reviewing video footage looking for people.
  • Face Recognition – this is the ability of the camera to store a database of face images and match the faces to various lists.  Different lists can have different actions associated.  This capability is usually built into an advanced AI NVR but for the QTN8225DA3-FR the AI function and database records are built into the camera.

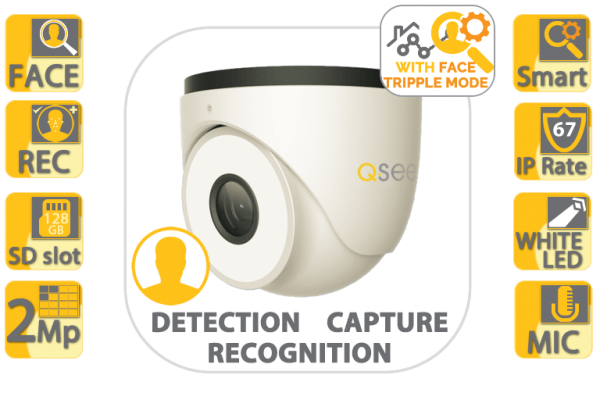

Key Features

QTN8225DA3-FR

  • Artificial Intelligence Face Detection/Capture/Recognition engine
  • 2MP 1920×1080 real time triple stream
  • Motorized Zoom Lens 7~22mm 44°~17.6° Field Of View
  • Starlight with Area White LED 10m
  • 3D DNR, True WDR, HLC, BLC and ROI
  • 1CH Audio Input with 1CH built in Microphone
  • Micro SD slot – Up to 128GB
  • PoE and DC12V
  • IP67 Ingress Protection
  • Mobile App direct to camera with Face support
  • Abnormal Video Smart Analytics





Facial Recognition Ready with A.I.

The QTN8225DA3-FR supports on-board face detection, capture and recognition.  No need to match with an AI ready NVR for the face recognition function.  The QTN8225DA3-FR can operate stand alone or with a “standard” non-AI NVR performing the AI Face Recognition functions on the camera or with a fully functioning AI-NVR.





Facial Detection for alerts, statistics and marketing
Recognize individuals for statistical analysis, database storage, deep search, list matching, marketing and alerts
Match regognition data to different lists with high accuracy then take actions. Set off alarms, receive shapshots, open doors etc
Match faces, report, receive alerts and take actions in real time. No processing delay
Receive alerts for banned customers or gold class customers ar any in between
Simple management of AI-NVR database records. Import, export and update with NVR GUI, Mac, PC or mobile
Maintain detailed information against each facial analytics record for search, statistics and marketing
Advanced A.I "Smart Search" features allow you to rapidly scan for faces across multiple camera recordings and time windows
Face tracking across multiple AI-NVRs in remote locations from multiple camera records and time frames
Statistics engine allows for analysis and investigation of activity levels and detailed reports for marketing teams
Responsive marketing can react to the capture category of a face in real time
Full management features with the QTView app. Perform all functions from your mobile
Search for any record field across all recordings from your NVR, Mobile or PC
Search for an uncategorized face by image across all recordings from your NVR, Mobile or PC
Playback face search matches anytime, anywhere with your mobile





Advanced Image Features



















Smart apps and software



















Match with the next generation Network Video Recorders with built in PoE ports for advanced video smart analysis, remote alerts, storage and plug and play setup.







Specifications

Model

QTN8225DA3-FR

Camera

Image Sensor 1 / 2.8 “CMOS
Image Size 1920 × 1080
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Iris Type DC-IRIS
Min. Illumination Color:0.0026 lux @F1.2, AGC ON; 0 lux with LED
Color:0.005 lux @F1.65, AGC ON; 0 lux with LED
Lens Motorized zoom lens, 7~22mm @F1.4, horizontal FoV: 44°~17.6°; Recommended face capturing distance: 4~12m
Lens Mount Φ14
Wide Dynamic Range 120dB
BLC Yes
HLC Yes
Defog Yes
Digital NR 3D DNR
Angle Adjustment Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°


Video Compression Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
H.264 Compression Standard Baseline Profile/Main Profile/High Profile
Resolution 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240
Main Stream 60Hz:1080P/720P(1~30fps) | 50Hz:1080P/720P (1~25fps) | HFR Mode: 1080P/720P(1~60fps/50fps)
Sub Stream 60Hz : 720P/D1/CIF (1~30fps)
50HZ: 720P/D1/CIF (1~25fps)
Third Stream 60Hz : D1/CIF/480×240 (1~30fps)
50Hz: D1/CIF/480×240 (1~25fps)
Bit Rate 64 Kbps ~ 6 Mbps
Bit Rate Type VBR / CBR
Image Settings ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
Audio Compression G711A/U
ROI Each ROI to be configured separately

Interfaces

Network RJ45
Audio 1CH audio input; 1 CH built-in MIC
Storage Built-in micro SD card slot, up to 128GB
Hardware Reset Yes
Functions
Remote Monitoring Web browsing,CMS remote control
Online Connection Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission
Network Protocol UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPs, QoS
Interface Protocol ONVIF
Storage Network remote storage; micro SD card storage
Smart Alarm Motion detection; SD card full; SD card error; IP address conflict; Network disconnection
Intelligent Analytics Scene change detection, video tampering detection, face detection, face capture, face recognition
General Function Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, face exposure
PoE Yes (802.3af)
Ingress Protection IP 67
LED View Distance 10m soft light

Face

Face Detection Pupil distance of a facial image over 20 pixel can be detected
Face Capturing By precise detecting, tracing, capturing, scoring and screening the moving faces to get the most effective face snapshots
Panorama Capturing Support panorama capturing and self-defined information overlay, like device ID, time, etc.
Intelligent Light Compensation Built-in high efficient white light LEDs, time switch available
Face Picture Database 10000 face pictures
Database Management Add, modify, delete and search face pictures
Face Picture Adding Add face pictures through WEB and Face Album Manager Tool
External Face Picture Enrollment Size: less than 70KB Format: jpg, jpeg
Face Picture Comparison Alarm Support face trigger alarm
Support allow list, block list, stranger alarms

Others

Power Supply DC12V/PoE
Power Consumption < 11W
Operating Environment ’-30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing)

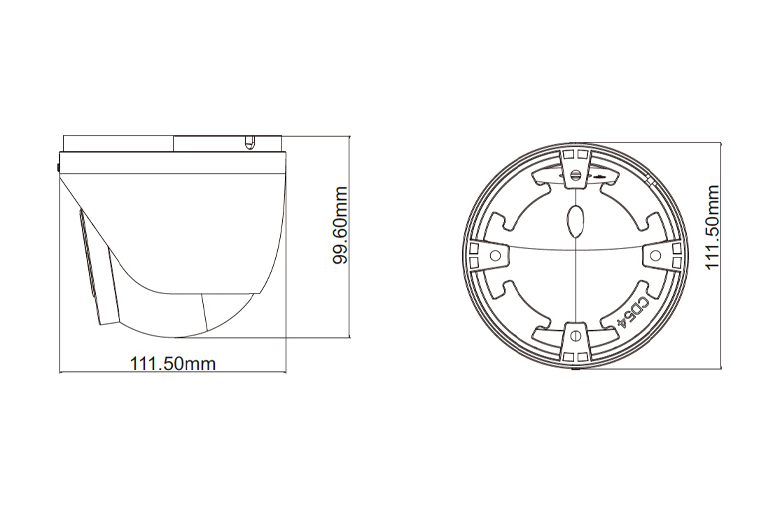

Dimensions ( mm ) Φ 111.5 × 99.6
Weight ( net ) Approx. 0.64KG
Installation Wall mounting; ceiling mounting
